F99减速机详细信息

prevnext

F99减速机

订购热线:13360667204
  1. 详细信息

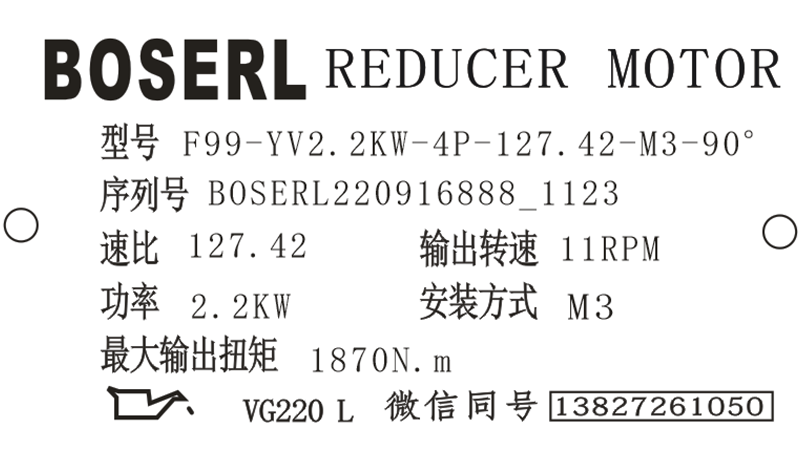

F99减速机铭牌参数说明解读含义:有关型号描述的详细情况及其他信息可以参阅本业附件下载中的F99减速机选型样本。

F99-YV2.2KW-4P-127.42-M3-90°

F:系列代号

99:减速机规格代号

YV:电机

2.2KW:电机功率

4P:电机级数

127.42:减速机传动比

M3:减速机安装位置

90°:接线盒位置


F99减速机安装方法:

F99减速机的固定:底脚式F99减速机螺栓规格M20。F99减速机螺栓/螺母拧紧扭矩强度等级8.8,螺栓规格M20拧紧扭矩410N.m。F系列减速机

法兰端公差:对中轴肩的公差依据 GB1800~1804标准、b1≤230mm时采用GBj6、b1>230mm时采用GBh6。

轴端公差:直径公差按照GB1800~1804规定、直径≤50mm的实心轴,采用GBk6、直径≥50mm的实心轴,采用GBm6、空心轴,采用GBH7、中心孔按照GB/T145标准C型式。

F99减速机安装条件:不当安装可能造成减速器及减速电机损失还可能造成财产损失。检查下列各点要求是否得到满足:减速电机铭牌上标注的电压与电源电压一致、驱动装置在运输或者仓储过程中未遭受损坏;确保满足下列规定:对于标准减速器:环保温度符合技术资料、铭牌以及章节“润滑油”中润滑油中的规定。周围不得存在有害油污、酸、气体、蒸汽、放射性环境等;对于特殊形式:传动装置要根据环境条件来设计。请注意铭牌上的规定;对于蜗轮蜗杆减速器:不能对蜗轮蜗杆减速器施加过大的逆向外部惯性矩,以免损坏减速器;必须彻底清除输出轴和法兰表面上的防锈剂、污垢或类似污染。必须使用常用的溶剂。不得让溶剂进入到轴密封环的密封唇上,否则会损坏材料;在腐蚀性的环境条件请保护好输出轴端面的油封以防损坏。平行轴斜齿轮减速机

F99减速机或F99减速电机只能以订购的安装位置进行安装/装配。请注意铭牌上的规定。支撑安装位置必须具备下列特征:、平稳、防震、·抗弯,刚性好;地脚和法兰固定所允许的最大平面误差(参考值参见 ISO 1101标准):减速器规格≤67:最大0.4mm 、减速器规格77-107:最大0.5mm、减速器规格137-147:最大0.7mmm、安装时不要将F99减速机地脚和安装法兰同时拧紧,以免相互较劲,且注意其许用径向力和轴向力!计算许用径向力与轴向力时要注意F99减速机样本中的“选型”章节。

F99减速机拆解结构图:F99减速机怎么拆?请看下图。下列示图为F99减速机结构原理图,示图仅作零件清单的归类用途。根据减速机的规格和设计型号的不同可能存在的偏差!


[1]小齿轮

[22]减速器箱体

[91]卡环

[506]垫片

[2]齿轮

[25]轴承

[92]垫片

[507]垫片

[3]齿轮轴

[30]轴承

[93]弹簧垫片

[508]垫片

[4]齿轮

[31]键

[94]六角螺栓

[515]垫片

[5]齿轮轴

[32]间隔套

[100]视孔盖

[516]垫片

[6]齿轮

[37]轴承

[101]六角螺栓

[517]垫片

[7]空心轴

[39]卡环

[102]密封垫

[521]垫片

[9]油封

[41]卡环

[131]密封盖

[522]垫片

[11]轴承

[42]轴承

[160]密封塞

[523]垫片

[14]六角螺栓

[43]键

[161]密封盖


[16]输出法兰

[45]轴承

[165]密封塞


[17]间隔套

[59]密封螺栓

[181]密封盖


[19]键

[81]O型密封圈

[183]油封


[20]透气阀

[88]卡环



F99减速机存放注意事项:若存放时间超过6个月,BOSERL公司建议采用“长期存放”设计规格。此种设计规格的减速机标识有相应的标签。

F99减速机的润滑油混合有防腐剂(挥发性腐蚀抑制剂)。注意,腐蚀剂仅在-25°C-+50°C范围内有效。另外,法兰表面与轴端都应涂防腐剂。长期存放时,要满足以下所列的存放条件:1.F99减速机包装必须由一家经验丰富的公司针对的采用合格的包装材料进行;2.BOSERL公司建议,根据安装的位置存放F99减速机。

温带(欧洲、美国、加拿大、中国和俄罗斯、热带地区除外):1.置于包装箱内,且与干燥剂、湿度指示器一同密封在塑料包装中。要求有顶棚、防雨、雪,无外部冲击。半年,需定期检查包装情况和湿度(相对湿度<50%);2.敞开,有顶棚、恒温、恒湿环境(5°C<0<60°C,相对湿度<50%)。要求没有温度上的起伏突变,带过滤通风设备(防尘、泥)。防湿气腐蚀和外部冲击。半年或更长,需定期检查:清洁、机械损伤和防腐情况。

温带(亚洲、非洲、中/南美洲、澳大利亚、新西南、温带地区除外):1.置于包装箱内,且与干燥剂、湿度指示器一同密封在塑料包装中。要求化学处理用于防虫、防霉。有顶棚,防雨,雪,无外部冲击。半年,需定期检查包装情况和湿度(相对湿度<50%);2.敞开,有顶棚、恒温、恒湿环境(5°C<0<60°C,相对湿度<50%)。要求没有温度上的起伏突变,带过滤通风设备(防尘、泥)。防湿气腐蚀和外部冲击。半年或更长,需定期检查:清洁、机械损伤和防腐情况。齿轮减速电机

存放一段时间后,开机调试前,F99减速机必须保持密封,以避免防腐剂挥发。F99减速机出厂时会根据安装位置(M1..M6)进行加油。F99减速机运行前,务必检查油位!


F99减速机型号:

NF97-Y0.75KW,NF97-Y1.1KW,NF97-Y1.5KW,NF97-Y100M4,NF97-Y112M4,NF97-Y11KW,NF97-Y132M4,NF97-Y15KW,NF97-Y160M4,NF97-Y18.5KW,NF97-Y180M4,NF97-Y2.2KW,NF97-Y200M4,NF97-Y22KW,NF97-Y30KW,NF97-Y3KW,NF97-Y4KW,NF97-Y5.5KW,NF97-Y7.5KW,NF97-Y80M4,NF97-Y90M4,NF97-YB100M4,NF97-YB112M4,NF97-YB132M4,NF97-YB160M4,NF97-YB180M4,NF97-YB200M4,NF97-YB80M4,NF97-YB90M4,NF97-YDP100M4,NF97-YDP112M4,NF97-YDP132M4,NF97-YDP160M4,NF97-YDP180M4,NF97-YDP200M4,NF97-YDP80M4,NF97-YDP90M4,NF97-YE100M4,NF97-YE112M4,NF97-YE132M4,NF97-YE160M4,NF97-YE180M4,NF97-YE200M4,NF97-YE80M4,NF97-YE90M4,NF97-YEJ100M4,NF97-YEJ112M4,NF97-YEJ132M4,NF97-YEJ160M4,NF97-YEJ180M4,NF97-YEJ200M4,NF97-YEJ80M4,NF97-YEJ90M4,NF97-YEJB100M4,NF97-YEJB112M4,NF97-YEJB132M4,NF97-YEJB160M4,NF97-YEJB180M4,NF97-YEJB200M4,NF97-YEJB80M4,NF97-YEJB90M4,NF97-YP100M4,NF97-YP112M4,NF97-YP132M4,NF97-YP160M4,NF97-YP180M4,NF97-YP200M4,NF97-YP80M4,NF97-YP90M4,NF97-YPB100M4,NF97-YPB112M4,NF97-YPB132M4,NF97-YPB160M4,NF97-YPB180M4,NF97-YPB200M4,NF97-YPB80M4,NF97-YPB90M4,NF97-YPE100M4,NF97-YPE112M4,NF97-YPE132M4,NF97-YPE160M4,NF97-YPE180M4,NF97-YPE200M4,NF97-YPE80M4,NF97-YPE90M4,NF97-YS100M4,NF97-YS112M4,NF97-YS132M4,NF97-YS160M4,NF97-YS180M4,NF97-YS200M4,NF97-YS80M4,NF97-YS90M4,NF97-YVB100M4,NF97-YVB112M4,NF97-YVB132M4,NF97-YVB160M4,NF97-YVB180M4,NF97-YVB200M4,NF97-YVB80M4,NF97-YVB90M4,NF97-YVP100M4,NF97-YVP112M4,NF97-YVP132M4,NF97-YVP160M4,NF97-YVP180M4,NF97-YVP200M4,NF97-YVP80M4,NF97-YVP90M4,NF97-YVPEJ100M4,NF97-YVPEJ112M4,NF97-YVPEJ132M4,NF97-YVPEJ160M4,NF97-YVPEJ180M4,NF97-YVPEJ200M4,NF97-YVPEJ80M4,NF97-YVPEJ90M4,SF97-Y0.75KW,SF97-Y1.1KW,SF97-Y1.5KW,SF97-Y100M4,SF97-Y112M4,SF97-Y11KW,SF97-Y132M4,SF97-Y15KW,SF97-Y160M4,SF97-Y18.5KW,SF97-Y180M4,SF97-Y2.2KW,SF97-Y200M4,SF97-Y22KW,SF97-Y30KW,SF97-Y3KW,SF97-Y4KW,SF97-Y5.5KW,SF97-Y7.5KW,SF97-Y80M4,SF97-Y90M4,SF97-YB100M4,SF97-YB112M4,SF97-YB132M4,SF97-YB160M4,SF97-YB180M4,SF97-YB200M4,SF97-YB80M4,SF97-YB90M4,SF97-YDP100M4,SF97-YDP112M4,SF97-YDP132M4,SF97-YDP160M4,SF97-YDP180M4,SF97-YDP200M4,SF97-YDP80M4,SF97-YDP90M4,SF97-YE100M4,SF97-YE112M4,SF97-YE132M4,SF97-YE160M4,SF97-YE180M4,SF97-YE200M4,SF97-YE80M4,SF97-YE90M4,SF97-YEJ100M4,SF97-YEJ112M4,SF97-YEJ132M4,SF97-YEJ160M4,SF97-YEJ180M4,SF97-YEJ200M4,SF97-YEJ80M4,SF97-YEJ90M4,SF97-YEJB100M4,SF97-YEJB112M4,SF97-YEJB132M4,SF97-YEJB160M4,SF97-YEJB180M4,SF97-YEJB200M4,SF97-YEJB80M4,SF97-YEJB90M4,SF97-YP100M4,SF97-YP112M4,SF97-YP132M4,SF97-YP160M4,SF97-YP180M4,SF97-YP200M4,SF97-YP80M4,SF97-YP90M4,SF97-YPB100M4,SF97-YPB112M4,SF97-YPB132M4,SF97-YPB160M4,SF97-YPB180M4,SF97-YPB200M4,SF97-YPB80M4,SF97-YPB90M4,SF97-YPE100M4,SF97-YPE112M4,SF97-YPE132M4,SF97-YPE160M4,SF97-YPE180M4,SF97-YPE200M4,SF97-YPE80M4,SF97-YPE90M4,SF97-YS100M4,SF97-YS112M4,SF97-YS132M4,SF97-YS160M4,SF97-YS180M4,SF97-YS200M4,SF97-YS80M4,SF97-YS90M4,SF97-YVB100M4,SF97-YVB112M4,SF97-YVB132M4,SF97-YVB160M4,SF97-YVB180M4,SF97-YVB200M4,SF97-YVB80M4,SF97-YVB90M4,SF97-YVP100M4,SF97-YVP112M4,SF97-YVP132M4,SF97-YVP160M4,SF97-YVP180M4,SF97-YVP200M4,SF97-YVP80M4,SF97-YVP90M4,SF97-YVPEJ100M4,SF97-YVPEJ112M4,SF97-YVPEJ132M4,SF97-YVPEJ160M4,SF97-YVPEJ180M4,SF97-YVPEJ200M4,SF97-YVPEJ80M4,SF97-YVPEJ90M4,WF97-Y0.75KW,WF97-Y1.1KW,WF97-Y1.5KW,WF97-Y100M4,WF97-Y112M4,WF97-Y11KW,WF97-Y132M4,WF97-Y15KW,WF97-Y160M4,WF97-Y18.5KW,WF97-Y180M4,WF97-Y2.2KW,WF97-Y200M4,WF97-Y22KW,WF97-Y30KW,WF97-Y3KW,WF97-Y4KW,WF97-Y5.5KW,WF97-Y7.5KW,WF97-Y80M4,WF97-Y90M4,WF97-YB100M4,WF97-YB112M4,WF97-YB132M4,WF97-YB160M4,WF97-YB180M4,WF97-YB200M4,WF97-YB80M4,WF97-YB90M4,WF97-YDP100M4,WF97-YDP112M4,WF97-YDP132M4,WF97-YDP160M4,WF97-YDP180M4,WF97-YDP200M4,WF97-YDP80M4,WF97-YDP90M4,WF97-YE100M4,WF97-YE112M4,WF97-YE132M4,WF97-YE160M4,WF97-YE180M4,WF97-YE200M4,WF97-YE80M4,WF97-YE90M4,WF97-YEJ100M4,WF97-YEJ112M4,WF97-YEJ132M4,WF97-YEJ160M4,WF97-YEJ180M4,WF97-YEJ200M4,WF97-YEJ80M4,WF97-YEJ90M4,WF97-YEJB100M4,WF97-YEJB112M4,WF97-YEJB132M4,WF97-YEJB160M4,WF97-YEJB180M4,WF97-YEJB200M4,WF97-YEJB80M4,WF97-YEJB90M4,WF97-YP100M4,WF97-YP112M4,WF97-YP132M4,WF97-YP160M4,WF97-YP180M4,WF97-YP200M4,WF97-YP80M4,WF97-YP90M4,WF97-YPB100M4,WF97-YPB112M4,WF97-YPB132M4,WF97-YPB160M4,WF97-YPB180M4,WF97-YPB200M4,WF97-YPB80M4,WF97-YPB90M4,WF97-YPE100M4,WF97-YPE112M4,WF97-YPE132M4,WF97-YPE160M4,WF97-YPE180M4,WF97-YPE200M4,WF97-YPE80M4,WF97-YPE90M4,WF97-YS100M4,WF97-YS112M4,WF97-YS132M4,WF97-YS160M4,WF97-YS180M4,WF97-YS200M4,WF97-YS80M4,WF97-YS90M4,WF97-YVB100M4,WF97-YVB112M4,WF97-YVB132M4,WF97-YVB160M4,WF97-YVB180M4,WF97-YVB200M4,WF97-YVB80M4,WF97-YVB90M4,WF97-YVP100M4,WF97-YVP112M4,WF97-YVP132M4,WF97-YVP160M4,WF97-YVP180M4,WF97-YVP200M4,WF97-YVP80M4,WF97-YVP90M4,WF97-YVPEJ100M4,WF97-YVPEJ112M4,WF97-YVPEJ132M4,WF97-YVPEJ160M4,WF97-YVPEJ180M4,WF97-YVPEJ200M4,WF97-YVPEJ80M4,WF97-YVPEJ90M4,AF97-Y0.75KW,AF97-Y1.1KW,AF97-Y1.5KW,AF97-Y100M4,AF97-Y112M4,AF97-Y11KW,AF97-Y132M4,AF97-Y15KW,AF97-Y160M4,AF97-Y18.5KW,AF97-Y180M4,AF97-Y2.2KW,AF97-Y200M4,AF97-Y22KW,AF97-Y30KW,AF97-Y3KW,AF97-Y4KW,AF97-Y5.5KW,AF97-Y7.5KW,AF97-Y80M4,AF97-Y90M4,AF97-YB100M4,AF97-YB112M4,AF97-YB132M4,AF97-YB160M4,AF97-YB180M4,AF97-YB200M4,AF97-YB80M4,AF97-YB90M4,AF97-YDP100M4,AF97-YDP112M4,AF97-YDP132M4,AF97-YDP160M4,AF97-YDP180M4,AF97-YDP200M4,AF97-YDP80M4,AF97-YDP90M4,AF97-YE100M4,AF97-YE112M4,AF97-YE132M4,AF97-YE160M4,AF97-YE180M4,AF97-YE200M4,AF97-YE80M4,AF97-YE90M4,AF97-YEJ100M4,AF97-YEJ112M4,AF97-YEJ132M4,AF97-YEJ160M4,AF97-YEJ180M4,AF97-YEJ200M4,AF97-YEJ80M4,AF97-YEJ90M4,AF97-YEJB100M4,AF97-YEJB112M4,AF97-YEJB132M4,AF97-YEJB160M4,AF97-YEJB180M4,AF97-YEJB200M4,AF97-YEJB80M4,AF97-YEJB90M4,AF97-YP100M4,AF97-YP112M4,AF97-YP132M4,AF97-YP160M4,AF97-YP180M4,AF97-YP200M4,AF97-YP80M4,AF97-YP90M4,AF97-YPB100M4,AF97-YPB112M4,AF97-YPB132M4,AF97-YPB160M4,AF97-YPB180M4,AF97-YPB200M4,AF97-YPB80M4,AF97-YPB90M4,AF97-YPE100M4,AF97-YPE112M4,AF97-YPE132M4,AF97-YPE160M4,AF97-YPE180M4,AF97-YPE200M4,AF97-YPE80M4,AF97-YPE90M4,AF97-YS100M4,AF97-YS112M4,AF97-YS132M4,AF97-YS160M4,AF97-YS180M4,AF97-YS200M4,AF97-YS80M4,AF97-YS90M4,AF97-YVB100M4,AF97-YVB112M4,AF97-YVB132M4,AF97-YVB160M4,AF97-YVB180M4,AF97-YVB200M4,AF97-YVB80M4,AF97-YVB90M4,AF97-YVP100M4,AF97-YVP112M4,AF97-YVP132M4,AF97-YVP160M4,AF97-YVP180M4,AF97-YVP200M4,AF97-YVP80M4,AF97-YVP90M4,AF97-YVPEJ100M4,AF97-YVPEJ112M4,AF97-YVPEJ132M4,AF97-YVPEJ160M4,AF97-YVPEJ180M4,AF97-YVPEJ200M4,AF97-YVPEJ80M4,AF97-YVPEJ90M4,GF99-Y0.75KW,GF99-Y1.1KW,GF99-Y1.5KW,GF99-Y100M4,GF99-Y112M4,GF99-Y11KW,GF99-Y132M4,GF99-Y15KW,GF99-Y160M4,GF99-Y18.5KW,GF99-Y180M4,GF99-Y2.2KW,GF99-Y200M4,GF99-Y22KW,GF99-Y30KW,GF99-Y3KW,GF99-Y4KW,GF99-Y5.5KW,GF99-Y7.5KW,GF99-Y80M4,GF99-Y90M4,GF99-YB100M4,GF99-YB112M4,GF99-YB132M4,GF99-YB160M4,GF99-YB180M4,GF99-YB200M4,GF99-YB80M4,GF99-YB90M4,GF99-YDP100M4,GF99-YDP112M4,GF99-YDP132M4,GF99-YDP160M4,GF99-YDP180M4,GF99-YDP200M4,GF99-YDP80M4,GF99-YDP90M4,GF99-YE100M4,GF99-YE112M4,GF99-YE132M4,GF99-YE160M4,GF99-YE180M4,GF99-YE200M4,GF99-YE80M4,GF99-YE90M4,GF99-YEJ100M4,GF99-YEJ112M4,GF99-YEJ132M4,GF99-YEJ160M4,GF99-YEJ180M4,GF99-YEJ200M4,GF99-YEJ80M4,GF99-YEJ90M4,GF99-YEJB100M4,GF99-YEJB112M4,GF99-YEJB132M4,GF99-YEJB160M4,GF99-YEJB180M4,GF99-YEJB200M4,GF99-YEJB80M4,GF99-YEJB90M4,GF99-YP100M4,GF99-YP112M4,GF99-YP132M4,GF99-YP160M4,GF99-YP180M4,GF99-YP200M4,GF99-YP80M4,GF99-YP90M4,GF99-YPB100M4,GF99-YPB112M4,GF99-YPB132M4,GF99-YPB160M4,GF99-YPB180M4,GF99-YPB200M4,GF99-YPB80M4,GF99-YPB90M4,GF99-YPE100M4,GF99-YPE112M4,GF99-YPE132M4,GF99-YPE160M4,GF99-YPE180M4,GF99-YPE200M4,GF99-YPE80M4,GF99-YPE90M4,GF99-YS100M4,GF99-YS112M4,GF99-YS132M4,GF99-YS160M4,GF99-YS180M4,GF99-YS200M4,GF99-YS80M4,GF99-YS90M4,GF99-YVB100M4,GF99-YVB112M4,GF99-YVB132M4,GF99-YVB160M4,GF99-YVB180M4,GF99-YVB200M4,GF99-YVB80M4,GF99-YVB90M4,GF99-YVP100M4,GF99-YVP112M4,GF99-YVP132M4,GF99-YVP160M4,GF99-YVP180M4,GF99-YVP200M4,GF99-YVP80M4,GF99-YVP90M4,GF99-YVPEJ100M4,GF99-YVPEJ112M4,GF99-YVPEJ132M4,GF99-YVPEJ160M4,GF99-YVPEJ180M4,GF99-YVPEJ200M4,GF99-YVPEJ80M4,GF99-YVPEJ90M4。

F99减速机生产厂家展示:看厂请联系微信13827261050,获取位置,需提前一天预约//www.lenable.com/product/list-fxiliejiansuji-cn.html

齿轮减速电机一体机

齿轮减速电机一体机

齿轮减速电机一体机

齿轮减速电机一体机

推荐类似型号:F89减速机

关键词:减速机带电机整套一体机_F系列减速机_F系列减速器_带减速器的电机_带减速机的电机_电机带减速机_GF系列减速机_F型减速机_F型平行轴斜齿轮减速电机_减速器带电机

F系列减速机型号:F29减速机,F39减速机,F49减速机,F69减速机,F79减速机,F89减速机,F99减速机,F109减速机,F129减速机,F159减速机

F系列电动机减速机可配变频电机,刹车电机,防爆电机,伺服电机,交流电机,直流电机,三相电机,单相电机 0.12KW-132KW之间

如需工程师帮选型,请加微信13827261050,留言告知工程师参数要求


标签:   F99减速机 F97减速机结构图 F97减速机数模 F97减速机样本 F97减速机规格

跟此产品相关的文档 / Related DownLoad

产品文件名称 点击下载
F99减速机三维图纸下载3D 点击下载
F99减速机选型样本 点击下载
