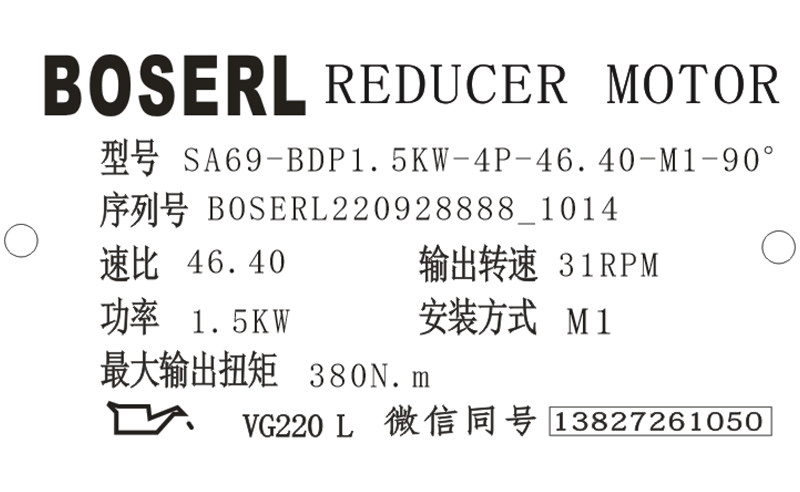

SA69减速器铭牌参数说明解读含义:有关型号描述的详细情况及其他信息可以参阅本业附件下载中的SA69减速器选型样本。
SA69-BDP1.5KW-4P-46.40-M1-90°
SA:系列代号
69:减速机规格代号
BDP:电机
1.5KW:电机功率
4P:电机级数
46.40:减速机传动比
M1:减速机安装位置
90°:接线盒位置
SA69减速器逆止器安装:
如果低于最小超越转速,则逆止器将会发生摩擦而产生高温,可能造成财产损失;在额外工作状态下,不得低于最小超越转速;在启动或制动阶段可以低于最小超越转速。根据各自的尺寸规格,逆止器的最小超越转速如下表:
型号 | 逆止器最大逆止力矩 [Nm] | 最小超越转速 [r/min] |
AD2/RS | 65 | 820 |
AD3/RS | 425 | 620 |
AD4/RS | 850 | 530 |
AD5/RS | 1450 | 480 |
AD6/RS | 1950 | 450 |
AD7/RS | 1950 | 450 |
AD8/RS | 1950 | 450 |
SA69减速器带逆止器的输入端装置AD../RS:安装或运送前检查驱动装置的旋转方向是否正确,若转向错误请与BOSERL公司客户服务部联系。在运行过程中,逆止器不需要特别维护或其他的维护措施。齿轮减速电机
逆止器用来避免逆向转动;如此便可确保运行过程中的定向转动。注意:逆向运转可能导致逆止器损坏;电机不允许逆向转动;注意供电是否正确,以确保电机定向转动;可以使电机输出一半的额定扭矩来检查逆止器方向。
转向要根据输出轴(LSS)来确定;顺时针旋转(CW);逆时针旋转(CCW);应在箱体上标识出许可转向。自锁减速机
SA69减速器无油位检查螺栓和安装盖:
通过密封螺栓检查油位:由于SA69减速器无油位螺栓或安装盖,因此需要通过检查孔进行检查;按照M5或M6的安装位置防止SA69减速器,即检查孔朝上;拧出密封螺栓1(见下图);将测量标尺垂直通过检查孔伸入减速器箱体的底部,然后再将测量标尺重新从检查孔中垂直抽出(见下图)。
用油标卡尺测出测量标尺上所沾的润滑油长度(见下图)。
将侧的值“X”与下表中根据安装位置所列的最小值进行比较,必要情况下调节油位高度;重新拧紧密封螺栓。伺服电机连接减速机
减速机型号 | 油位=测量标尺上所沾的长度X(mm)安装位置 |
SA69减速器 | M1 | M2 | M3 | M4 | M5 | M6 |
10±1 | 24±1 | 34±1 | 37±1 | 24±1 | 24±1 |
SA69减速器型号:
