KA109减速器详细信息

prevnext

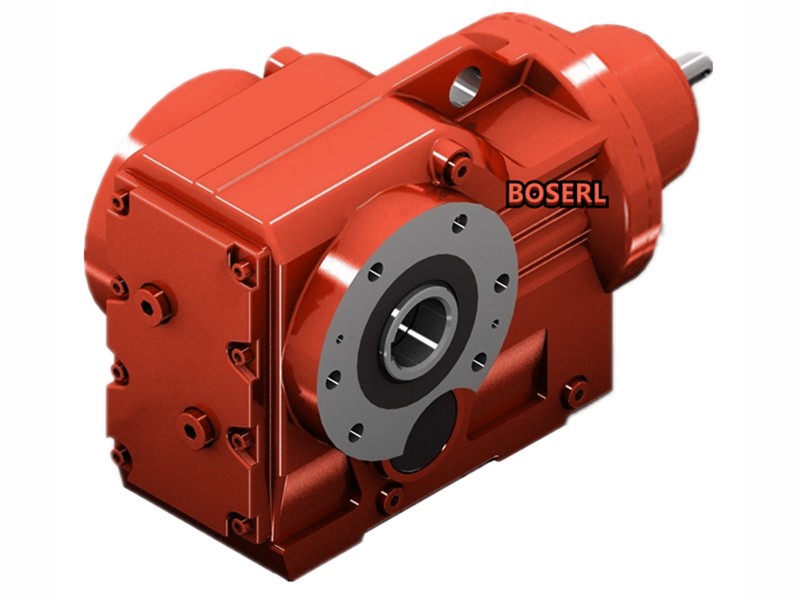

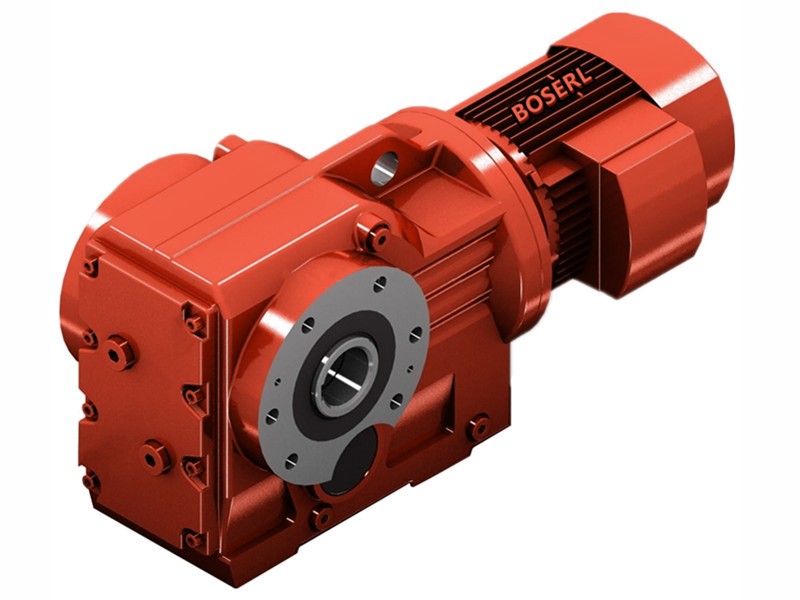

KA109减速器

订购热线:13360667204
  1. 详细信息

KA109减速器铭牌参数说明解读含义:有关型号描述的详细情况及其他信息可以参阅本业附件下载中的KA109减速器选型样本。

KA109-BVB-11KW-4P-73.3-M4-180°

KA:系列代号

109:减速机规格代号

BVB:电机

11KW:电机功率

4P:电机级数

73.3:减速机传动比

M4:减速机安装位置

180°:接线盒位置


KA109减速器逆止器安装:

KA109减速器带逆止器的输入端装置AD../RS:安装或运送前检查驱动装置的旋转方向是否正确,若转向错误请与BOSERL公司客户服务部联系。在运行过程中,逆止器不需要特别维护或其他的维护措施。齿轮减速电机

如果低于最小超越转速,则逆止器将会发生摩擦而产生高温,可能造成财产损失;在额外工作状态下,不得低于最小超越转速;在启动或制动阶段可以低于最小超越转速。根据各自的尺寸规格,逆止器的最小超越转速如下表:

型号

逆止器最大逆止力矩

[Nm]

最小超越转速

[r/min]

AD2/RS

65

820

AD3/RS

425

620

AD4/RS

850

530

AD5/RS

1450

480

AD6/RS

1950

450

AD7/RS

1950

450

AD8/RS

1950

450

逆止器用来避免逆向转动;如此便可确保运行过程中的定向转动。注意:逆向运转可能导致逆止器损坏;电机不允许逆向转动;注意供电是否正确,以确保电机定向转动;可以使电机输出一半的额定扭矩来检查逆止器方向。

转向要根据输出轴(LSS)来确定;顺时针旋转(CW);逆时针旋转(CCW);应在箱体上标识出许可转向。


KA109减速器润滑油更换:

由于KA109减速器发热或KA109减速器油温过高可能引起烫伤,对KA109减速器进行操作前先冷却,KA109减速器必须保持一定温度以避免由于油温过低引起流动性差影响正常排放。直角减速机

通过放油螺栓和透气阀进行换油:将一个容器置于放油螺栓下方;卸下油位检查螺栓、透气阀与放油螺栓;将润滑油完全排放;重新拧入放油螺栓;通过透气阀注入新的同类润滑油(否则必须与客户服务联系),禁止混用不同种类的合成润滑油;重新拧入油位检查螺栓与透气阀。

通过安装盖换油:拧开安装盖的螺丝,打开安装盖提取少许润滑油,检查润滑油的状况,将润滑油完全排放,装上安装盖。

通过密封螺栓换油:通过密封孔将润滑油完全排放;通过检查孔加入新的同类润滑油(否则必须与客户服务部联系),禁止混用不同种类的合成润滑油;检查油位;重新拧紧密封螺栓。空心轴减速机


KA109减速器电机型号:

YQKA107-Y100M4,YQKA107-Y112M4,YQKA107-Y11KWA,YQKA107-Y132M4,YQKA107-Y15KWA,YQKA107-Y160M4,YQKA107-Y18.5KWA,YQKA107-Y180M4,YQKA107-Y200M4,YQKA107-Y225M4,YQKA107-Y22KWA,YQKA107-Y30KWA,YQKA107-Y37KWA,YQKA107-Y3KWA,YQKA107-Y45KWA,YQKA107-Y4KWA,YQKA107-Y5.5KWA,YQKA107-Y7.5KWA,YQKA107-YB100M4,YQKA107-YB112M4,YQKA107-YB132M4,YQKA107-YB160M4,YQKA107-YB180M4,YQKA107-YB200M4,YQKA107-YB225M4,YQKA107-YDP100M4,YQKA107-YDP112M4,YQKA107-YDP132M4,YQKA107-YDP160M4,YQKA107-YDP180M4,YQKA107-YDP200M4,YQKA107-YDP225M4,YQKA107-YE100M4,YQKA107-YE112M4,YQKA107-YE132M4,YQKA107-YE160M4,YQKA107-YE180M4,YQKA107-YE200M4,YQKA107-YE225M4,YQKA107-YEJ100M4,YQKA107-YEJ112M4,YQKA107-YEJ132M4,YQKA107-YEJ160M4,YQKA107-YEJ180M4,YQKA107-YEJ200M4,YQKA107-YEJ225M4,YQKA107-YEJB100M4,YQKA107-YEJB112M4,YQKA107-YEJB132M4,YQKA107-YEJB160M4,YQKA107-YEJB180M4,YQKA107-YEJB200M4,YQKA107-YEJB225M4,YQKA107-YP100M4,YQKA107-YP112M4,YQKA107-YP132M4,YQKA107-YP160M4,YQKA107-YP180M4,YQKA107-YP200M4,YQKA107-YP225M4,YQKA107-YPB100M4,YQKA107-YPB112M4,YQKA107-YPB132M4,YQKA107-YPB160M4,YQKA107-YPB180M4,YQKA107-YPB200M4,YQKA107-YPB225M4,YQKA107-YPE100M4,YQKA107-YPE112M4,YQKA107-YPE132M4,YQKA107-YPE160M4,YQKA107-YPE180M4,YQKA107-YPE200M4,YQKA107-YPE225M4,YQKA107-YS100M4,YQKA107-YS112M4,YQKA107-YS132M4,YQKA107-YS160M4,YQKA107-YS180M4,YQKA107-YS200M4,YQKA107-YS225M4,YQKA107-YVB100M4,YQKA107-YVB112M4,YQKA107-YVB132M4,YQKA107-YVB160M4,YQKA107-YVB180M4,YQKA107-YVB200M4,YQKA107-YVB225M4,YQKA107-YVP100M4,YQKA107-YVP112M4,YQKA107-YVP132M4,YQKA107-YVP160M4,YQKA107-YVP180M4,YQKA107-YVP200M4,YQKA107-YVP225M4,YQKA107-YVPEJ100M4,YQKA107-YVPEJ112M4,YQKA107-YVPEJ132M4,YQKA107-YVPEJ160M4,YQKA107-YVPEJ180M4,YQKA107-YVPEJ200M4,YQKA107-YVPEJ225M4,KWA107-Y100M4,KWA107-Y112M4,KWA107-Y11KWA,KWA107-Y132M4,KWA107-Y15KWA,KWA107-Y160M4,KWA107-Y18.5KWA,KWA107-Y180M4,KWA107-Y200M4,KWA107-Y225M4,KWA107-Y22KWA,KWA107-Y30KWA,KWA107-Y37KWA,KWA107-Y3KWA,KWA107-Y45KWA,KWA107-Y4KWA,KWA107-Y5.5KWA,KWA107-Y7.5KWA,KWA107-YB100M4,KWA107-YB112M4,KWA107-YB132M4,KWA107-YB160M4,KWA107-YB180M4,KWA107-YB200M4,KWA107-YB225M4,KWA107-YDP100M4,KWA107-YDP112M4,KWA107-YDP132M4,KWA107-YDP160M4,KWA107-YDP180M4,KWA107-YDP200M4,KWA107-YDP225M4,KWA107-YE100M4,KWA107-YE112M4,KWA107-YE132M4,KWA107-YE160M4,KWA107-YE180M4,KWA107-YE200M4,KWA107-YE225M4,KWA107-YEJ100M4,KWA107-YEJ112M4,KWA107-YEJ132M4,KWA107-YEJ160M4,KWA107-YEJ180M4,KWA107-YEJ200M4,KWA107-YEJ225M4,KWA107-YEJB100M4,KWA107-YEJB112M4,KWA107-YEJB132M4,KWA107-YEJB160M4,KWA107-YEJB180M4,KWA107-YEJB200M4,KWA107-YEJB225M4,KWA107-YP100M4,KWA107-YP112M4,KWA107-YP132M4,KWA107-YP160M4,KWA107-YP180M4,KWA107-YP200M4,KWA107-YP225M4,KWA107-YPB100M4,KWA107-YPB112M4,KWA107-YPB132M4,KWA107-YPB160M4,KWA107-YPB180M4,KWA107-YPB200M4,KWA107-YPB225M4,KWA107-YPE100M4,KWA107-YPE112M4,KWA107-YPE132M4,KWA107-YPE160M4,KWA107-YPE180M4,KWA107-YPE200M4,KWA107-YPE225M4,KWA107-YS100M4,KWA107-YS112M4,KWA107-YS132M4,KWA107-YS160M4,KWA107-YS180M4,KWA107-YS200M4,KWA107-YS225M4,KWA107-YVB100M4,KWA107-YVB112M4,KWA107-YVB132M4,KWA107-YVB160M4,KWA107-YVB180M4,KWA107-YVB200M4,KWA107-YVB225M4,KWA107-YVP100M4,KWA107-YVP112M4,KWA107-YVP132M4,KWA107-YVP160M4,KWA107-YVP180M4,KWA107-YVP200M4,KWA107-YVP225M4,KWA107-YVPEJ100M4,KWA107-YVPEJ112M4,KWA107-YVPEJ132M4,KWA107-YVPEJ160M4,KWA107-YVPEJ180M4,KWA107-YVPEJ200M4,KWA107-YVPEJ225M4,XDKA107-Y100M4,XDKA107-Y112M4,XDKA107-Y11KWA,XDKA107-Y132M4,XDKA107-Y15KWA,XDKA107-Y160M4,XDKA107-Y18.5KWA,XDKA107-Y180M4,XDKA107-Y200M4,XDKA107-Y225M4,XDKA107-Y22KWA,XDKA107-Y30KWA,XDKA107-Y37KWA,XDKA107-Y3KWA,XDKA107-Y45KWA,XDKA107-Y4KWA,XDKA107-Y5.5KWA,XDKA107-Y7.5KWA,XDKA107-YB100M4,XDKA107-YB112M4,XDKA107-YB132M4,XDKA107-YB160M4,XDKA107-YB180M4,XDKA107-YB200M4,XDKA107-YB225M4,XDKA107-YDP100M4,XDKA107-YDP112M4,XDKA107-YDP132M4,XDKA107-YDP160M4,XDKA107-YDP180M4,XDKA107-YDP200M4,XDKA107-YDP225M4,XDKA107-YE100M4,XDKA107-YE112M4,XDKA107-YE132M4,XDKA107-YE160M4,XDKA107-YE180M4,XDKA107-YE200M4,XDKA107-YE225M4,XDKA107-YEJ100M4,XDKA107-YEJ112M4,XDKA107-YEJ132M4,XDKA107-YEJ160M4,XDKA107-YEJ180M4,XDKA107-YEJ200M4,XDKA107-YEJ225M4,XDKA107-YEJB100M4,XDKA107-YEJB112M4,XDKA107-YEJB132M4,XDKA107-YEJB160M4,XDKA107-YEJB180M4,XDKA107-YEJB200M4,XDKA107-YEJB225M4,XDKA107-YP100M4,XDKA107-YP112M4,XDKA107-YP132M4,XDKA107-YP160M4,XDKA107-YP180M4,XDKA107-YP200M4,XDKA107-YP225M4,XDKA107-YPB100M4,XDKA107-YPB112M4,XDKA107-YPB132M4,XDKA107-YPB160M4,XDKA107-YPB180M4,XDKA107-YPB200M4,XDKA107-YPB225M4,XDKA107-YPE100M4,XDKA107-YPE112M4,XDKA107-YPE132M4,XDKA107-YPE160M4,XDKA107-YPE180M4,XDKA107-YPE200M4,XDKA107-YPE225M4,XDKA107-YS100M4,XDKA107-YS112M4,XDKA107-YS132M4,XDKA107-YS160M4,XDKA107-YS180M4,XDKA107-YS200M4,XDKA107-YS225M4,XDKA107-YVB100M4,XDKA107-YVB112M4,XDKA107-YVB132M4,XDKA107-YVB160M4,XDKA107-YVB180M4,XDKA107-YVB200M4,XDKA107-YVB225M4,XDKA107-YVP100M4,XDKA107-YVP112M4,XDKA107-YVP132M4,XDKA107-YVP160M4,XDKA107-YVP180M4,XDKA107-YVP200M4,XDKA107-YVP225M4,XDKA107-YVPEJ100M4,XDKA107-YVPEJ112M4,XDKA107-YVPEJ132M4,XDKA107-YVPEJ160M4,XDKA107-YVPEJ180M4,XDKA107-YVPEJ200M4,XDKA107-YVPEJ225M4,JCKA107-Y100M4,JCKA107-Y112M4,JCKA107-Y11KWA,JCKA107-Y132M4,JCKA107-Y15KWA,JCKA107-Y160M4,JCKA107-Y18.5KWA,JCKA107-Y180M4,JCKA107-Y200M4,JCKA107-Y225M4,JCKA107-Y22KWA,JCKA107-Y30KWA,JCKA107-Y37KWA,JCKA107-Y3KWA,JCKA107-Y45KWA,JCKA107-Y4KWA,JCKA107-Y5.5KWA,JCKA107-Y7.5KWA,JCKA107-YB100M4,JCKA107-YB112M4,JCKA107-YB132M4,JCKA107-YB160M4,JCKA107-YB180M4,JCKA107-YB200M4,JCKA107-YB225M4,JCKA107-YDP100M4,JCKA107-YDP112M4,JCKA107-YDP132M4,JCKA107-YDP160M4,JCKA107-YDP180M4,JCKA107-YDP200M4,JCKA107-YDP225M4,JCKA107-YE100M4,JCKA107-YE112M4,JCKA107-YE132M4,JCKA107-YE160M4,JCKA107-YE180M4,JCKA107-YE200M4,JCKA107-YE225M4,JCKA107-YEJ100M4,JCKA107-YEJ112M4,JCKA107-YEJ132M4,JCKA107-YEJ160M4,JCKA107-YEJ180M4,JCKA107-YEJ200M4,JCKA107-YEJ225M4,JCKA107-YEJB100M4,JCKA107-YEJB112M4,JCKA107-YEJB132M4,JCKA107-YEJB160M4,JCKA107-YEJB180M4,JCKA107-YEJB200M4,JCKA107-YEJB225M4,JCKA107-YP100M4,JCKA107-YP112M4,JCKA107-YP132M4,JCKA107-YP160M4,JCKA107-YP180M4,JCKA107-YP200M4,JCKA107-YP225M4,JCKA107-YPB100M4,JCKA107-YPB112M4,JCKA107-YPB132M4,JCKA107-YPB160M4,JCKA107-YPB180M4,JCKA107-YPB200M4,JCKA107-YPB225M4,JCKA107-YPE100M4,JCKA107-YPE112M4,JCKA107-YPE132M4,JCKA107-YPE160M4,JCKA107-YPE180M4,JCKA107-YPE200M4,JCKA107-YPE225M4,JCKA107-YS100M4,JCKA107-YS112M4,JCKA107-YS132M4,JCKA107-YS160M4,JCKA107-YS180M4,JCKA107-YS200M4,JCKA107-YS225M4,JCKA107-YVB100M4,JCKA107-YVB112M4,JCKA107-YVB132M4,JCKA107-YVB160M4,JCKA107-YVB180M4,JCKA107-YVB200M4,JCKA107-YVB225M4,JCKA107-YVP100M4,JCKA107-YVP112M4,JCKA107-YVP132M4,JCKA107-YVP160M4,JCKA107-YVP180M4,JCKA107-YVP200M4,JCKA107-YVP225M4,JCKA107-YVPEJ100M4,JCKA107-YVPEJ112M4,JCKA107-YVPEJ132M4,JCKA107-YVPEJ160M4,JCKA107-YVPEJ180M4,JCKA107-YVPEJ200M4,JCKA107-YVPEJ225M4,KA109-Y100M4,KA109-Y112M4,KA109-Y11KWA,KA109-Y132M4,KA109-Y15KWA,KA109-Y160M4,KA109-Y18.5KWA,KA109-Y180M4,KA109-Y200M4,KA109-Y225M4,KA109-Y22KWA,KA109-Y30KWA,KA109-Y37KWA,KA109-Y3KWA,KA109-Y45KWA,KA109-Y4KWA,KA109-Y5.5KWA,KA109-Y7.5KWA,KA109-YB100M4,KA109-YB112M4,KA109-YB132M4,KA109-YB160M4,KA109-YB180M4,KA109-YB200M4,KA109-YB225M4,KA109-YDP100M4,KA109-YDP112M4,KA109-YDP132M4,KA109-YDP160M4,KA109-YDP180M4,KA109-YDP200M4,KA109-YDP225M4,KA109-YE100M4,KA109-YE112M4,KA109-YE132M4,KA109-YE160M4,KA109-YE180M4,KA109-YE200M4,KA109-YE225M4,KA109-YEJ100M4,KA109-YEJ112M4,KA109-YEJ132M4,KA109-YEJ160M4,KA109-YEJ180M4,KA109-YEJ200M4,KA109-YEJ225M4,KA109-YEJB100M4,KA109-YEJB112M4,KA109-YEJB132M4,KA109-YEJB160M4,KA109-YEJB180M4,KA109-YEJB200M4,KA109-YEJB225M4,KA109-YP100M4,KA109-YP112M4,KA109-YP132M4,KA109-YP160M4,KA109-YP180M4,KA109-YP200M4,KA109-YP225M4,KA109-YPB100M4,KA109-YPB112M4,KA109-YPB132M4,KA109-YPB160M4,KA109-YPB180M4,KA109-YPB200M4,KA109-YPB225M4,KA109-YPE100M4,KA109-YPE112M4,KA109-YPE132M4,KA109-YPE160M4,KA109-YPE180M4,KA109-YPE200M4,KA109-YPE225M4,KA109-YS100M4,KA109-YS112M4,KA109-YS132M4,KA109-YS160M4,KA109-YS180M4,KA109-YS200M4,KA109-YS225M4,KA109-YVB100M4,KA109-YVB112M4,KA109-YVB132M4,KA109-YVB160M4,KA109-YVB180M4,KA109-YVB200M4,KA109-YVB225M4,KA109-YVP100M4,KA109-YVP112M4,KA109-YVP132M4,KA109-YVP160M4,KA109-YVP180M4,KA109-YVP200M4,KA109-YVP225M4,KA109-YVPEJ100M4,KA109-YVPEJ112M4,KA109-YVPEJ132M4,KA109-YVPEJ160M4,KA109-YVPEJ180M4,KA109-YVPEJ200M4,KA109-YVPEJ225M4,KA107SF80,KA107SF90,KA107SF100,KA107SF112,KA107SF115,KA107SF140,KA107SF160,KA107SF190。

KA109减速器生产厂家展示:看厂请联系微信13827261050,获取位置,需提前一天预约//www.lenable.com/product/list-kaxiliejiansuji-cn.html

齿轮减速电机一体机

齿轮减速电机一体机

齿轮减速电机一体机

齿轮减速电机一体机

推荐类似型号:K109减速机

关键词:直角中空减速机带电机一体化_空心轴减速机_中孔输出减速机_通孔减速机_KA系列减速机_GKA系列减速机_KA系列减速器_空心轴减速器_直角中空减速器_中孔输出减速器_通孔减速器

KA系列齿轮减速电机型号:KA39减速机,KA49减速机,KA59减速机,KA69减速机,KA79减速机,KA89减速机,KA99减速机,KA109减速机,KA129减速机,KA159减速机,KA169减速机,KA189减速机

KA系列直角减速机可配变频电机,刹车电机,防爆电机,伺服电机,交流电机,直流电机,三相电机,单相电机 0.12KW-200KW之间

如需工程师帮选型,请加微信13827261050,留言告知工程师参数要求



标签:   KA109减速器 KA107斜齿轮减速机 KA107减速机3D模型 KA107型减速机选型参数 KA107卧式减速机一体机 KA107伺服减速机

跟此产品相关的文档 / Related DownLoad

产品文件名称 点击下载
KA109减速器3D模型 点击下载
KA109减速器选型参数 点击下载
