KF99减速机详细信息

prevnext

KF99减速机

订购热线:13360667204
  1. 详细信息

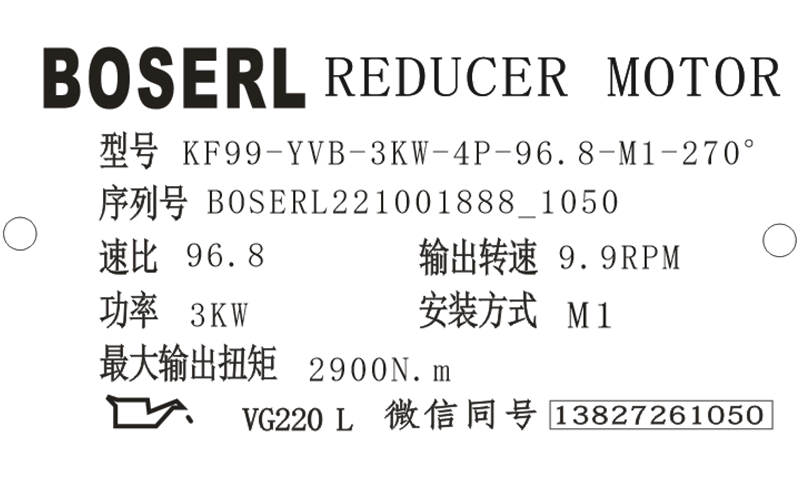

KF99减速机铭牌参数说明解读含义:有关型号描述的详细情况及其他信息可以参阅本业附件下载中的K99减速机选型样本。

KF99-YVB-3KW-4P-96.8-M1-270°

KF:系列代号

99:减速机规格代号

YVB:电机

3KW:电机功率

4P:电机级数

96.8:减速机传动比

M1:减速机安装位置

270°:接线盒位置


KF99减速机润滑油型号:

KF99减速机某些安装位置发生搅油损失的机会较高。出现下列情况时请与BOSERL公司进行联系:若无特殊规定,BOSERL公司发货时会根据KF99减速机的安装位置给驱动装置加润滑油,因此应在订货时指定安装位置(M1…M6,参见“KF99减速机说明书中的安装位置与订货说明”章节)。若之后对安装位置需要改动,则加润滑油必须与安装位置相符(润滑油加注量)。直角减速机

KF99减速机润滑油加注量,具体值根据级数与传动比的不同而各异。请您在加注润滑油时一定注意油位螺栓所指示的精确油量。本页附件中的KF99减速机选型样本中列出了安装位置从M1到M6KF99减速机相应的润滑油加注标准,请自行下载查看。

KF99减速机特殊应用场合必须使用特殊润滑油,比如要求长使用寿命润滑油。若需要可提供用于食品行业和生物降解润滑油。齿轮减速电机

KF99减速机推荐使用的润滑油,其等级和粘度指标见下表:

ISO标准润滑油

粘贴指标

环境温度°C

减速机型号

MINERALOILCLP(cc)

ISOVG220

-10-+40

R系列、F系列、K系列减速机

ISOVG680

0-+40

S系列减速机

ISO标准润滑油

粘贴指标

环境温度°C

减速机型号

MINERALOILCLP(cc)

ISOVG100

-20-+25

R系列、F系列、K系列减速机

Synthetic fluid,clp pg

ISOVG220

-25-+80

R系列、F系列、K系列减速机

Synthetic fluid,CLP HC

ISOVG460

-30-+80

S系列减速机


KF99减速机使用说明:

KF99减速机警告说明:由于KF99减速机发热或KF99减速机油温过高可能引起烫伤;对KF99减速机进行操作前先冷却;拧出油位检查螺栓和放油螺栓时要格外小心。

KF99减速机注意事项:若未注入正确的KF99减速机油则可能造成润滑油性能失效,可能造成财产损失;合成润滑油不可能相互混用并不可与矿物润滑油混用;矿物油用作标准的润滑油,不能用于特殊行业。

KF99减速机提示事项:油位检查螺栓、放油螺栓、以及透气阀的位置在安装位置上,要参见KF99减速机说明书安装位置章节中的内容。

KF99减速机的螺母:立式安装KF99减速机输出法兰螺母规格M16;KF99减速机螺母/螺母拧紧扭矩强度等级10.9。伺服电机减速机

KF99减速机危险使用说明:驱动装置意外启动会造成挤伤,可能造成重伤或死亡;开始工作前,应先断开减速电机的电源并且采取措施防止意外接通!

KF99减速机型号:

WKF97-Y1.1SKF,WKF97-Y1.5SKF,WKF97-Y100M4,WKF97-Y112M4,WKF97-Y11SKF,WKF97-Y132M4,WKF97-Y15SKF,WKF97-Y160M4,WKF97-Y18.5SKF,WKF97-Y180M4,WKF97-Y2.2SKF,WKF97-Y200M4,WKF97-Y22SKF,WKF97-Y30SKF,WKF97-Y3SKF,WKF97-Y4SKF,WKF97-Y5.5SKF,WKF97-Y7.5SKF,WKF97-Y80M4,WKF97-Y90M4,WKF97-YB100M4,WKF97-YB112M4,WKF97-YB132M4,WKF97-YB160M4,WKF97-YB180M4,WKF97-YB200M4,WKF97-YB80M4,WKF97-YB90M4,WKF97-YDP100M4,WKF97-YDP112M4,WKF97-YDP132M4,WKF97-YDP160M4,WKF97-YDP180M4,WKF97-YDP200M4,WKF97-YDP80M4,WKF97-YDP90M4,WKF97-YE100M4,WKF97-YE112M4,WKF97-YE132M4,WKF97-YE160M4,WKF97-YE180M4,WKF97-YE200M4,WKF97-YE80M4,WKF97-YE90M4,WKF97-YEJ100M4,WKF97-YEJ112M4,WKF97-YEJ132M4,WKF97-YEJ160M4,WKF97-YEJ180M4,WKF97-YEJ200M4,WKF97-YEJ80M4,WKF97-YEJ90M4,WKF97-YEJB100M4,WKF97-YEJB112M4,WKF97-YEJB132M4,WKF97-YEJB160M4,WKF97-YEJB180M4,WKF97-YEJB200M4,WKF97-YEJB80M4,WKF97-YEJB90M4,WKF97-YP100M4,WKF97-YP112M4,WKF97-YP132M4,WKF97-YP160M4,WKF97-YP180M4,WKF97-YP200M4,WKF97-YP80M4,WKF97-YP90M4,WKF97-YPB100M4,WKF97-YPB112M4,WKF97-YPB132M4,WKF97-YPB160M4,WKF97-YPB180M4,WKF97-YPB200M4,WKF97-YPB80M4,WKF97-YPB90M4,WKF97-YPE100M4,WKF97-YPE112M4,WKF97-YPE132M4,WKF97-YPE160M4,WKF97-YPE180M4,WKF97-YPE200M4,WKF97-YPE80M4,WKF97-YPE90M4,WKF97-YS100M4,WKF97-YS112M4,WKF97-YS132M4,WKF97-YS160M4,WKF97-YS180M4,WKF97-YS200M4,WKF97-YS80M4,WKF97-YS90M4,WKF97-YVB100M4,WKF97-YVB112M4,WKF97-YVB132M4,WKF97-YVB160M4,WKF97-YVB180M4,WKF97-YVB200M4,WKF97-YVB80M4,WKF97-YVB90M4,WKF97-YVP100M4,WKF97-YVP112M4,WKF97-YVP132M4,WKF97-YVP160M4,WKF97-YVP180M4,WKF97-YVP200M4,WKF97-YVP80M4,WKF97-YVP90M4,WKF97-YVPEJ100M4,WKF97-YVPEJ112M4,WKF97-YVPEJ132M4,WKF97-YVPEJ160M4,WKF97-YVPEJ180M4,WKF97-YVPEJ200M4,WKF97-YVPEJ80M4,WKF97-YVPEJ90M4,SKF97-Y1.1SKF,SKF97-Y1.5SKF,SKF97-Y100M4,SKF97-Y112M4,SKF97-Y11SKF,SKF97-Y132M4,SKF97-Y15SKF,SKF97-Y160M4,SKF97-Y18.5SKF,SKF97-Y180M4,SKF97-Y2.2SKF,SKF97-Y200M4,SKF97-Y22SKF,SKF97-Y30SKF,SKF97-Y3SKF,SKF97-Y4SKF,SKF97-Y5.5SKF,SKF97-Y7.5SKF,SKF97-Y80M4,SKF97-Y90M4,SKF97-YB100M4,SKF97-YB112M4,SKF97-YB132M4,SKF97-YB160M4,SKF97-YB180M4,SKF97-YB200M4,SKF97-YB80M4,SKF97-YB90M4,SKF97-YDP100M4,SKF97-YDP112M4,SKF97-YDP132M4,SKF97-YDP160M4,SKF97-YDP180M4,SKF97-YDP200M4,SKF97-YDP80M4,SKF97-YDP90M4,SKF97-YE100M4,SKF97-YE112M4,SKF97-YE132M4,SKF97-YE160M4,SKF97-YE180M4,SKF97-YE200M4,SKF97-YE80M4,SKF97-YE90M4,SKF97-YEJ100M4,SKF97-YEJ112M4,SKF97-YEJ132M4,SKF97-YEJ160M4,SKF97-YEJ180M4,SKF97-YEJ200M4,SKF97-YEJ80M4,SKF97-YEJ90M4,SKF97-YEJB100M4,SKF97-YEJB112M4,SKF97-YEJB132M4,SKF97-YEJB160M4,SKF97-YEJB180M4,SKF97-YEJB200M4,SKF97-YEJB80M4,SKF97-YEJB90M4,SKF97-YP100M4,SKF97-YP112M4,SKF97-YP132M4,SKF97-YP160M4,SKF97-YP180M4,SKF97-YP200M4,SKF97-YP80M4,SKF97-YP90M4,SKF97-YPB100M4,SKF97-YPB112M4,SKF97-YPB132M4,SKF97-YPB160M4,SKF97-YPB180M4,SKF97-YPB200M4,SKF97-YPB80M4,SKF97-YPB90M4,SKF97-YPE100M4,SKF97-YPE112M4,SKF97-YPE132M4,SKF97-YPE160M4,SKF97-YPE180M4,SKF97-YPE200M4,SKF97-YPE80M4,SKF97-YPE90M4,SKF97-YS100M4,SKF97-YS112M4,SKF97-YS132M4,SKF97-YS160M4,SKF97-YS180M4,SKF97-YS200M4,SKF97-YS80M4,SKF97-YS90M4,SKF97-YVB100M4,SKF97-YVB112M4,SKF97-YVB132M4,SKF97-YVB160M4,SKF97-YVB180M4,SKF97-YVB200M4,SKF97-YVB80M4,SKF97-YVB90M4,SKF97-YVP100M4,SKF97-YVP112M4,SKF97-YVP132M4,SKF97-YVP160M4,SKF97-YVP180M4,SKF97-YVP200M4,SKF97-YVP80M4,SKF97-YVP90M4,SKF97-YVPEJ100M4,SKF97-YVPEJ112M4,SKF97-YVPEJ132M4,SKF97-YVPEJ160M4,SKF97-YVPEJ180M4,SKF97-YVPEJ200M4,SKF97-YVPEJ80M4,SKF97-YVPEJ90M4,AKF97-Y1.1SKF,AKF97-Y1.5SKF,AKF97-Y100M4,AKF97-Y112M4,AKF97-Y11SKF,AKF97-Y132M4,AKF97-Y15SKF,AKF97-Y160M4,AKF97-Y18.5SKF,AKF97-Y180M4,AKF97-Y2.2SKF,AKF97-Y200M4,AKF97-Y22SKF,AKF97-Y30SKF,AKF97-Y3SKF,AKF97-Y4SKF,AKF97-Y5.5SKF,AKF97-Y7.5SKF,AKF97-Y80M4,AKF97-Y90M4,AKF97-YB100M4,AKF97-YB112M4,AKF97-YB132M4,AKF97-YB160M4,AKF97-YB180M4,AKF97-YB200M4,AKF97-YB80M4,AKF97-YB90M4,AKF97-YDP100M4,AKF97-YDP112M4,AKF97-YDP132M4,AKF97-YDP160M4,AKF97-YDP180M4,AKF97-YDP200M4,AKF97-YDP80M4,AKF97-YDP90M4,AKF97-YE100M4,AKF97-YE112M4,AKF97-YE132M4,AKF97-YE160M4,AKF97-YE180M4,AKF97-YE200M4,AKF97-YE80M4,AKF97-YE90M4,AKF97-YEJ100M4,AKF97-YEJ112M4,AKF97-YEJ132M4,AKF97-YEJ160M4,AKF97-YEJ180M4,AKF97-YEJ200M4,AKF97-YEJ80M4,AKF97-YEJ90M4,AKF97-YEJB100M4,AKF97-YEJB112M4,AKF97-YEJB132M4,AKF97-YEJB160M4,AKF97-YEJB180M4,AKF97-YEJB200M4,AKF97-YEJB80M4,AKF97-YEJB90M4,AKF97-YP100M4,AKF97-YP112M4,AKF97-YP132M4,AKF97-YP160M4,AKF97-YP180M4,AKF97-YP200M4,AKF97-YP80M4,AKF97-YP90M4,AKF97-YPB100M4,AKF97-YPB112M4,AKF97-YPB132M4,AKF97-YPB160M4,AKF97-YPB180M4,AKF97-YPB200M4,AKF97-YPB80M4,AKF97-YPB90M4,AKF97-YPE100M4,AKF97-YPE112M4,AKF97-YPE132M4,AKF97-YPE160M4,AKF97-YPE180M4,AKF97-YPE200M4,AKF97-YPE80M4,AKF97-YPE90M4,AKF97-YS100M4,AKF97-YS112M4,AKF97-YS132M4,AKF97-YS160M4,AKF97-YS180M4,AKF97-YS200M4,AKF97-YS80M4,AKF97-YS90M4,AKF97-YVB100M4,AKF97-YVB112M4,AKF97-YVB132M4,AKF97-YVB160M4,AKF97-YVB180M4,AKF97-YVB200M4,AKF97-YVB80M4,AKF97-YVB90M4,AKF97-YVP100M4,AKF97-YVP112M4,AKF97-YVP132M4,AKF97-YVP160M4,AKF97-YVP180M4,AKF97-YVP200M4,AKF97-YVP80M4,AKF97-YVP90M4,AKF97-YVPEJ100M4,AKF97-YVPEJ112M4,AKF97-YVPEJ132M4,AKF97-YVPEJ160M4,AKF97-YVPEJ180M4,AKF97-YVPEJ200M4,AKF97-YVPEJ80M4,AKF97-YVPEJ90M4,NKF97-Y1.1SKF,NKF97-Y1.5SKF,NKF97-Y100M4,NKF97-Y112M4,NKF97-Y11SKF,NKF97-Y132M4,NKF97-Y15SKF,NKF97-Y160M4,NKF97-Y18.5SKF,NKF97-Y180M4,NKF97-Y2.2SKF,NKF97-Y200M4,NKF97-Y22SKF,NKF97-Y30SKF,NKF97-Y3SKF,NKF97-Y4SKF,NKF97-Y5.5SKF,NKF97-Y7.5SKF,NKF97-Y80M4,NKF97-Y90M4,NKF97-YB100M4,NKF97-YB112M4,NKF97-YB132M4,NKF97-YB160M4,NKF97-YB180M4,NKF97-YB200M4,NKF97-YB80M4,NKF97-YB90M4,NKF97-YDP100M4,NKF97-YDP112M4,NKF97-YDP132M4,NKF97-YDP160M4,NKF97-YDP180M4,NKF97-YDP200M4,NKF97-YDP80M4,NKF97-YDP90M4,NKF97-YE100M4,NKF97-YE112M4,NKF97-YE132M4,NKF97-YE160M4,NKF97-YE180M4,NKF97-YE200M4,NKF97-YE80M4,NKF97-YE90M4,NKF97-YEJ100M4,NKF97-YEJ112M4,NKF97-YEJ132M4,NKF97-YEJ160M4,NKF97-YEJ180M4,NKF97-YEJ200M4,NKF97-YEJ80M4,NKF97-YEJ90M4,NKF97-YEJB100M4,NKF97-YEJB112M4,NKF97-YEJB132M4,NKF97-YEJB160M4,NKF97-YEJB180M4,NKF97-YEJB200M4,NKF97-YEJB80M4,NKF97-YEJB90M4,NKF97-YP100M4,NKF97-YP112M4,NKF97-YP132M4,NKF97-YP160M4,NKF97-YP180M4,NKF97-YP200M4,NKF97-YP80M4,NKF97-YP90M4,NKF97-YPB100M4,NKF97-YPB112M4,NKF97-YPB132M4,NKF97-YPB160M4,NKF97-YPB180M4,NKF97-YPB200M4,NKF97-YPB80M4,NKF97-YPB90M4,NKF97-YPE100M4,NKF97-YPE112M4,NKF97-YPE132M4,NKF97-YPE160M4,NKF97-YPE180M4,NKF97-YPE200M4,NKF97-YPE80M4,NKF97-YPE90M4,NKF97-YS100M4,NKF97-YS112M4,NKF97-YS132M4,NKF97-YS160M4,NKF97-YS180M4,NKF97-YS200M4,NKF97-YS80M4,NKF97-YS90M4,NKF97-YVB100M4,NKF97-YVB112M4,NKF97-YVB132M4,NKF97-YVB160M4,NKF97-YVB180M4,NKF97-YVB200M4,NKF97-YVB80M4,NKF97-YVB90M4,NKF97-YVP100M4,NKF97-YVP112M4,NKF97-YVP132M4,NKF97-YVP160M4,NKF97-YVP180M4,NKF97-YVP200M4,NKF97-YVP80M4,NKF97-YVP90M4,NKF97-YVPEJ100M4,NKF97-YVPEJ112M4,NKF97-YVPEJ132M4,NKF97-YVPEJ160M4,NKF97-YVPEJ180M4,NKF97-YVPEJ200M4,NKF97-YVPEJ80M4,NKF97-YVPEJ90M4,GKF99-Y1.1SKF,GKF99-Y1.5SKF,GKF99-Y100M4,GKF99-Y112M4,GKF99-Y11SKF,GKF99-Y132M4,GKF99-Y15SKF,GKF99-Y160M4,GKF99-Y18.5SKF,GKF99-Y180M4,GKF99-Y2.2SKF,GKF99-Y200M4,GKF99-Y22SKF,GKF99-Y30SKF,GKF99-Y3SKF,GKF99-Y4SKF,GKF99-Y5.5SKF,GKF99-Y7.5SKF,GKF99-Y80M4,GKF99-Y90M4,GKF99-YB100M4,GKF99-YB112M4,GKF99-YB132M4,GKF99-YB160M4,GKF99-YB180M4,GKF99-YB200M4,GKF99-YB80M4,GKF99-YB90M4,GKF99-YDP100M4,GKF99-YDP112M4,GKF99-YDP132M4,GKF99-YDP160M4,GKF99-YDP180M4,GKF99-YDP200M4,GKF99-YDP80M4,GKF99-YDP90M4,GKF99-YE100M4,GKF99-YE112M4,GKF99-YE132M4,GKF99-YE160M4,GKF99-YE180M4,GKF99-YE200M4,GKF99-YE80M4,GKF99-YE90M4,GKF99-YEJ100M4,GKF99-YEJ112M4,GKF99-YEJ132M4,GKF99-YEJ160M4,GKF99-YEJ180M4,GKF99-YEJ200M4,GKF99-YEJ80M4,GKF99-YEJ90M4,GKF99-YEJB100M4,GKF99-YEJB112M4,GKF99-YEJB132M4,GKF99-YEJB160M4,GKF99-YEJB180M4,GKF99-YEJB200M4,GKF99-YEJB80M4,GKF99-YEJB90M4,GKF99-YP100M4,GKF99-YP112M4,GKF99-YP132M4,GKF99-YP160M4,GKF99-YP180M4,GKF99-YP200M4,GKF99-YP80M4,GKF99-YP90M4,GKF99-YPB100M4,GKF99-YPB112M4,GKF99-YPB132M4,GKF99-YPB160M4,GKF99-YPB180M4,GKF99-YPB200M4,GKF99-YPB80M4,GKF99-YPB90M4,GKF99-YPE100M4,GKF99-YPE112M4,GKF99-YPE132M4,GKF99-YPE160M4,GKF99-YPE180M4,GKF99-YPE200M4,GKF99-YPE80M4,GKF99-YPE90M4,GKF99-YS100M4,GKF99-YS112M4,GKF99-YS132M4,GKF99-YS160M4,GKF99-YS180M4,GKF99-YS200M4,GKF99-YS80M4,GKF99-YS90M4,GKF99-YVB100M4,GKF99-YVB112M4,GKF99-YVB132M4,GKF99-YVB160M4,GKF99-YVB180M4,GKF99-YVB200M4,GKF99-YVB80M4,GKF99-YVB90M4,GKF99-YVP100M4,GKF99-YVP112M4,GKF99-YVP132M4,GKF99-YVP160M4,GKF99-YVP180M4,GKF99-YVP200M4,GKF99-YVP80M4,GKF99-YVP90M4,GKF99-YVPEJ100M4,GKF99-YVPEJ112M4,GKF99-YVPEJ132M4,GKF99-YVPEJ160M4,GKF99-YVPEJ180M4,GKF99-YVPEJ200M4,GKF99-YVPEJ80M4,GKF99-YVPEJ90M4。

KF99减速机生产厂家展示:看厂请联系微信13827261050,获取位置,需提前一天预约//www.lenable.com/product/list-kfxiliejiansuji-cn.html

齿轮减速电机一体机

齿轮减速电机一体机

齿轮减速电机一体机

齿轮减速电机一体机

推荐类似型号:K99减速机

关键词:带伺服减速机_伺服电机减速机_伺服电机减速器_伺服减速器_大扭力减速机_大扭力减速器_交流减速机_GKF系列减速机_KF系列减速机_伺服电机减速机一体机_伺服减速机一体机_KF系列减速器

KF系列齿轮减速电机型号:KF39减速机,KF49减速机,KF59减速机,KF69减速机,KF79减速机,KF89减速机,KF99减速机,KF109减速机,KF129减速机,KF159减速机,KF167减速机,KF187减速机

KF系列直角减速机可配变频电机,刹车电机,防爆电机,伺服电机,交流电机,直流电机,三相电机,单相电机 0.12KW-200KW之间

如需工程师帮选型,请加微信13827261050,留言告知工程师参数要求



标签:   KF99减速机 KF97减速机结构图 KF97减速机数模 KF97减速机样本 KF97减速机规格

跟此产品相关的文档 / Related DownLoad

产品文件名称 点击下载
KF99减速机数模 点击下载
KF99减速机样本 点击下载
