SAF69减速机详细信息

prevnext

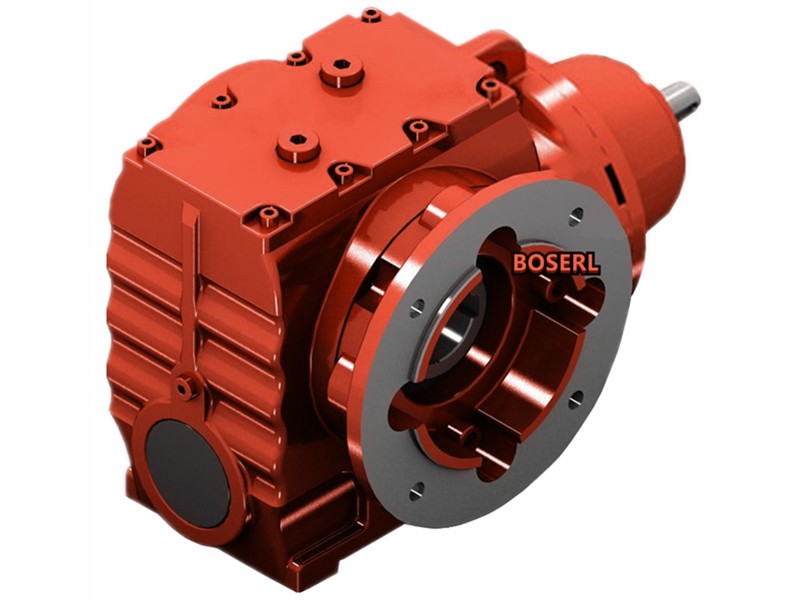

SAF69减速机

订购热线:13360667204
  1. 详细信息

SAF69减速机铭牌参数说明解读含义:有关型号描述的详细情况及其他信息可以参阅本业附件下载中的SAF69减速机选型样本。

SAF69-BPB4KW-4P-10.03-M2-270°

SAF:系列代号

69:减速机规格代号

BPB:电机

4KW:电机功率

4P:电机级数

10.03:减速机传动比

M2:减速机安装位置

270°:接线盒位置


SAF69减速机AD轴入模块配置:

SAF69减速机AD轴入模块根据计算所得的螺栓长度,选取最接近的较小的标准长度;从对中轴肩上卸下固定螺栓;清洁装配表面和对中轴肩;清洁新螺栓的螺纹并且使用螺栓紧固剂抹在前段螺纹上;将应用设备装在对中轴肩上,并根据下表所列的拧紧扭矩TA(见下表)拧入紧固螺栓。齿轮减速电机

SAF69减速机AD轴入模块使用对中轴肩安装应用设备:对应用设备进行固定时,必须提供相应长度的螺栓。新螺栓的长度L计算如下:[1]t+a;[t]旋入深度(参见表格);[a]应用设备的厚度;[s]紧固螺纹(参见表格)

SAF69减速机AD轴入模块型号

旋入深度

t[mm]

紧固螺纹

S

拧紧扭矩

TA用于强度等级为8.8的连接螺栓

SAF69AD2/ZR

25.5

M8

25

SAF69AD3ZR

31.5

M10

48

SAF69AD4/ZR

36

M12

86

SAF69AD5/ZR

44

M12

86

SAF69AD6/ZR

48.5

M16

210

SAF69AD7/ZR

49

M20

410

SAF69AD8/ZR

42

M12

86


SAF69减速机AD轴入模块在进行调节之前松开螺母,使得螺栓可以在支架上轴向移动。当到达最终调节位置后再上紧螺母。不可通过支架来调整电机安装平台。

SAF69减速机AD轴入模块允许荷载:安装电机时可能出现超常负荷;严禁超出下表所列的负荷值。强度等级为8.8的连接螺栓的最大负荷值。电机的最大允许许重力Fqmax,随着中心距X的增加而呈线性下降。在中心距减小的情况下,Fqmax不增加;联轴器输出法兰盘直径:160mm。自锁减速机

SAF69减速机AD轴入模块型号

X [mm]

F q [N]

SAF69AD2/ZR

193

330

SAF69AD3/ZR

274

1400

SAF69AD4/ZR

361

1120

SAF69AD4/ZR

361

3300

SAF69AD5/ZR

487

3200

SAF69AD6/ZR

567

3900

SAF69AD7/ZR

663

10000

SAF69AD8/ZR

516

4300


SAF69减速机维护检查:

SAF69减速机开机调试:在开机调试之前请您务必检查油位是否符合安装要求。请注意斜齿轮蜗轮蜗杆减速机的输出轴的转动方向正好相反。转向改变:请您互换两个电机电源线。SAF69减速机磨合时间需要至少48小时进行磨合以实现最大效率。若SAF69减速机双向运转,则对于每个转向都需要单独的磨合时间。下表列出了磨合时间所降低功率的平均值。伺服电机涡轮涡杆减速机

蜗杆头数

S系列速比范围

η-降低

1头

约50-280

约12%

2头

约20-75

约6%

3头

约20-90

约3%

4头

-

-

5头

约6-25

约3%

6头

约7-25

约2%

SAF69减速机检查:首次运行300小时后更换润滑油,以后每6个月或3000小时检查一次,发现油位不足或明显浑浊应及时更换(参考下列图表):操作步骤检查油的质量与油位;检查是否可能因轴承损坏产生运转噪音;检查密封圈是否漏油;对于带扭矩臂的SAF69减速机:检测橡胶缓冲块,必要时进行更换。根据工作条件(参见下列图表),至少每隔半年(每6个月)根据油温决定:操作步骤更换矿物油;更换轴承润滑脂(推荐);更换油封(不要安装在同样工作轨迹上)。根据工作条件(参见下列图表),至少每隔半年(每6个月)根据油温决定:操作步骤更换合成润滑油;更换轴承润滑脂(推荐);更换油封(不要安装在同样工作轨迹上)。示具体情况而定,不定期检查(取决于外部影响):修补或者更新表面漆/防锈漆。

SAF69减速机润滑油更换周期:下图为在一般条件下标准SAF69减速机的更换周期,对于恶劣环境或有腐蚀条件下使用的特殊情况要缩短更换润滑油的间隔。


SAF69减速机维护:根据外部受到的影响,可以在必要情况下对表面漆/防锈漆进行修补或更新。


SAF69减速机型号:

WSAF67-Y0.18KW,WSAF67-Y0.25KW,WSAF67-Y0.37KW,WSAF67-Y0.55KW,WSAF67-Y0.75KW,WSAF67-Y1.1KW,WSAF67-Y1.5KW,WSAF67-Y100M4,WSAF67-Y112M4,WSAF67-Y132M4,WSAF67-Y2.2KW,WSAF67-Y3KW,WSAF67-Y4KW,WSAF67-Y5.5KW,WSAF67-Y63M4,WSAF67-Y71M4,WSAF67-Y80M4,WSAF67-Y90M4,WSAF67-YB100M4,WSAF67-YB112M4,WSAF67-YB132M4,WSAF67-YB63M4,WSAF67-YB71M4,WSAF67-YB80M4,WSAF67-YB90M4,WSAF67-YDP100M4,WSAF67-YDP112M4,WSAF67-YDP132M4,WSAF67-YDP63M4,WSAF67-YDP71M4,WSAF67-YDP80M4,WSAF67-YDP90M4,WSAF67-YE100M4,WSAF67-YE112M4,WSAF67-YE132M4,WSAF67-YE63M4,WSAF67-YE71M4,WSAF67-YE80M4,WSAF67-YE90M4,WSAF67-YEJ100M4,WSAF67-YEJ112M4,WSAF67-YEJ132M4,WSAF67-YEJ63M4,WSAF67-YEJ71M4,WSAF67-YEJ80M4,WSAF67-YEJ90M4,WSAF67-YEJB100M4,WSAF67-YEJB112M4,WSAF67-YEJB132M4,WSAF67-YEJB63M4,WSAF67-YEJB71M4,WSAF67-YEJB80M4,WSAF67-YEJB90M4,WSAF67-YP100M4,WSAF67-YP112M4,WSAF67-YP132M4,WSAF67-YP63M4,WSAF67-YP71M4,WSAF67-YP80M4,WSAF67-YP90M4,WSAF67-YPB100M4,WSAF67-YPB112M4,WSAF67-YPB132M4,WSAF67-YPB63M4,WSAF67-YPB71M4,WSAF67-YPB80M4,WSAF67-YPB90M4,WSAF67-YPE100M4,WSAF67-YPE112M4,WSAF67-YPE132M4,WSAF67-YPE63M4,WSAF67-YPE71M4,WSAF67-YPE80M4,WSAF67-YPE90M4,WSAF67-YS100M4,WSAF67-YS112M4,WSAF67-YS132M4,WSAF67-YS63M4,WSAF67-YS71M4,WSAF67-YS80M4,WSAF67-YS90M4,WSAF67-YVB100M4,WSAF67-YVB112M4,WSAF67-YVB132M4,WSAF67-YVB63M4,WSAF67-YVB71M4,WSAF67-YVB80M4,WSAF67-YVB90M4,WSAF67-YVP100M4,WSAF67-YVP112M4,WSAF67-YVP132M4,WSAF67-YVP63M4,WSAF67-YVP71M4,WSAF67-YVP80M4,WSAF67-YVP90M4,WSAF67-YVPEJ100M4,WSAF67-YVPEJ112M4,WSAF67-YVPEJ132M4,WSAF67-YVPEJ63M4,WSAF67-YVPEJ71M4,WSAF67-YVPEJ80M4,WSAF67-YVPEJ90M4,NSAF67-Y0.18KW,NSAF67-Y0.25KW,NSAF67-Y0.37KW,NSAF67-Y0.55KW,NSAF67-Y0.75KW,NSAF67-Y1.1KW,NSAF67-Y1.5KW,NSAF67-Y100M4,NSAF67-Y112M4,NSAF67-Y132M4,NSAF67-Y2.2KW,NSAF67-Y3KW,NSAF67-Y4KW,NSAF67-Y5.5KW,NSAF67-Y63M4,NSAF67-Y71M4,NSAF67-Y80M4,NSAF67-Y90M4,NSAF67-YB100M4,NSAF67-YB112M4,NSAF67-YB132M4,NSAF67-YB63M4,NSAF67-YB71M4,NSAF67-YB80M4,NSAF67-YB90M4,NSAF67-YDP100M4,NSAF67-YDP112M4,NSAF67-YDP132M4,NSAF67-YDP63M4,NSAF67-YDP71M4,NSAF67-YDP80M4,NSAF67-YDP90M4,NSAF67-YE100M4,NSAF67-YE112M4,NSAF67-YE132M4,NSAF67-YE63M4,NSAF67-YE71M4,NSAF67-YE80M4,NSAF67-YE90M4,NSAF67-YEJ100M4,NSAF67-YEJ112M4,NSAF67-YEJ132M4,NSAF67-YEJ63M4,NSAF67-YEJ71M4,NSAF67-YEJ80M4,NSAF67-YEJ90M4,NSAF67-YEJB100M4,NSAF67-YEJB112M4,NSAF67-YEJB132M4,NSAF67-YEJB63M4,NSAF67-YEJB71M4,NSAF67-YEJB80M4,NSAF67-YEJB90M4,NSAF67-YP100M4,NSAF67-YP112M4,NSAF67-YP132M4,NSAF67-YP63M4,NSAF67-YP71M4,NSAF67-YP80M4,NSAF67-YP90M4,NSAF67-YPB100M4,NSAF67-YPB112M4,NSAF67-YPB132M4,NSAF67-YPB63M4,NSAF67-YPB71M4,NSAF67-YPB80M4,NSAF67-YPB90M4,NSAF67-YPE100M4,NSAF67-YPE112M4,NSAF67-YPE132M4,NSAF67-YPE63M4,NSAF67-YPE71M4,NSAF67-YPE80M4,NSAF67-YPE90M4,NSAF67-YS100M4,NSAF67-YS112M4,NSAF67-YS132M4,NSAF67-YS63M4,NSAF67-YS71M4,NSAF67-YS80M4,NSAF67-YS90M4,NSAF67-YVB100M4,NSAF67-YVB112M4,NSAF67-YVB132M4,NSAF67-YVB63M4,NSAF67-YVB71M4,NSAF67-YVB80M4,NSAF67-YVB90M4,NSAF67-YVP100M4,NSAF67-YVP112M4,NSAF67-YVP132M4,NSAF67-YVP63M4,NSAF67-YVP71M4,NSAF67-YVP80M4,NSAF67-YVP90M4,NSAF67-YVPEJ100M4,NSAF67-YVPEJ112M4,NSAF67-YVPEJ132M4,NSAF67-YVPEJ63M4,NSAF67-YVPEJ71M4,NSAF67-YVPEJ80M4,NSAF67-YVPEJ90M4,ASAF67-Y0.18KW,ASAF67-Y0.25KW,ASAF67-Y0.37KW,ASAF67-Y0.55KW,ASAF67-Y0.75KW,ASAF67-Y1.1KW,ASAF67-Y1.5KW,ASAF67-Y100M4,ASAF67-Y112M4,ASAF67-Y132M4,ASAF67-Y2.2KW,ASAF67-Y3KW,ASAF67-Y4KW,ASAF67-Y5.5KW,ASAF67-Y63M4,ASAF67-Y71M4,ASAF67-Y80M4,ASAF67-Y90M4,ASAF67-YB100M4,ASAF67-YB112M4,ASAF67-YB132M4,ASAF67-YB63M4,ASAF67-YB71M4,ASAF67-YB80M4,ASAF67-YB90M4,ASAF67-YDP100M4,ASAF67-YDP112M4,ASAF67-YDP132M4,ASAF67-YDP63M4,ASAF67-YDP71M4,ASAF67-YDP80M4,ASAF67-YDP90M4,ASAF67-YE100M4,ASAF67-YE112M4,ASAF67-YE132M4,ASAF67-YE63M4,ASAF67-YE71M4,ASAF67-YE80M4,ASAF67-YE90M4,ASAF67-YEJ100M4,ASAF67-YEJ112M4,ASAF67-YEJ132M4,ASAF67-YEJ63M4,ASAF67-YEJ71M4,ASAF67-YEJ80M4,ASAF67-YEJ90M4,ASAF67-YEJB100M4,ASAF67-YEJB112M4,ASAF67-YEJB132M4,ASAF67-YEJB63M4,ASAF67-YEJB71M4,ASAF67-YEJB80M4,ASAF67-YEJB90M4,ASAF67-YP100M4,ASAF67-YP112M4,ASAF67-YP132M4,ASAF67-YP63M4,ASAF67-YP71M4,ASAF67-YP80M4,ASAF67-YP90M4,ASAF67-YPB100M4,ASAF67-YPB112M4,ASAF67-YPB132M4,ASAF67-YPB63M4,ASAF67-YPB71M4,ASAF67-YPB80M4,ASAF67-YPB90M4,ASAF67-YPE100M4,ASAF67-YPE112M4,ASAF67-YPE132M4,ASAF67-YPE63M4,ASAF67-YPE71M4,ASAF67-YPE80M4,ASAF67-YPE90M4,ASAF67-YS100M4,ASAF67-YS112M4,ASAF67-YS132M4,ASAF67-YS63M4,ASAF67-YS71M4,ASAF67-YS80M4,ASAF67-YS90M4,ASAF67-YVB100M4,ASAF67-YVB112M4,ASAF67-YVB132M4,ASAF67-YVB63M4,ASAF67-YVB71M4,ASAF67-YVB80M4,ASAF67-YVB90M4,ASAF67-YVP100M4,ASAF67-YVP112M4,ASAF67-YVP132M4,ASAF67-YVP63M4,ASAF67-YVP71M4,ASAF67-YVP80M4,ASAF67-YVP90M4,ASAF67-YVPEJ100M4,ASAF67-YVPEJ112M4,ASAF67-YVPEJ132M4,ASAF67-YVPEJ63M4,ASAF67-YVPEJ71M4,ASAF67-YVPEJ80M4,ASAF67-YVPEJ90M4,SSAF67-Y0.18KW,SSAF67-Y0.25KW,SSAF67-Y0.37KW,SSAF67-Y0.55KW,SSAF67-Y0.75KW,SSAF67-Y1.1KW,SSAF67-Y1.5KW,SSAF67-Y100M4,SSAF67-Y112M4,SSAF67-Y132M4,SSAF67-Y2.2KW,SSAF67-Y3KW,SSAF67-Y4KW,SSAF67-Y5.5KW,SSAF67-Y63M4,SSAF67-Y71M4,SSAF67-Y80M4,SSAF67-Y90M4,SSAF67-YB100M4,SSAF67-YB112M4,SSAF67-YB132M4,SSAF67-YB63M4,SSAF67-YB71M4,SSAF67-YB80M4,SSAF67-YB90M4,SSAF67-YDP100M4,SSAF67-YDP112M4,SSAF67-YDP132M4,SSAF67-YDP63M4,SSAF67-YDP71M4,SSAF67-YDP80M4,SSAF67-YDP90M4,SSAF67-YE100M4,SSAF67-YE112M4,SSAF67-YE132M4,SSAF67-YE63M4,SSAF67-YE71M4,SSAF67-YE80M4,SSAF67-YE90M4,SSAF67-YEJ100M4,SSAF67-YEJ112M4,SSAF67-YEJ132M4,SSAF67-YEJ63M4,SSAF67-YEJ71M4,SSAF67-YEJ80M4,SSAF67-YEJ90M4,SSAF67-YEJB100M4,SSAF67-YEJB112M4,SSAF67-YEJB132M4,SSAF67-YEJB63M4,SSAF67-YEJB71M4,SSAF67-YEJB80M4,SSAF67-YEJB90M4,SSAF67-YP100M4,SSAF67-YP112M4,SSAF67-YP132M4,SSAF67-YP63M4,SSAF67-YP71M4,SSAF67-YP80M4,SSAF67-YP90M4,SSAF67-YPB100M4,SSAF67-YPB112M4,SSAF67-YPB132M4,SSAF67-YPB63M4,SSAF67-YPB71M4,SSAF67-YPB80M4,SSAF67-YPB90M4,SSAF67-YPE100M4,SSAF67-YPE112M4,SSAF67-YPE132M4,SSAF67-YPE63M4,SSAF67-YPE71M4,SSAF67-YPE80M4,SSAF67-YPE90M4,SSAF67-YS100M4,SSAF67-YS112M4,SSAF67-YS132M4,SSAF67-YS63M4,SSAF67-YS71M4,SSAF67-YS80M4,SSAF67-YS90M4,SSAF67-YVB100M4,SSAF67-YVB112M4,SSAF67-YVB132M4,SSAF67-YVB63M4,SSAF67-YVB71M4,SSAF67-YVB80M4,SSAF67-YVB90M4,SSAF67-YVP100M4,SSAF67-YVP112M4,SSAF67-YVP132M4,SSAF67-YVP63M4,SSAF67-YVP71M4,SSAF67-YVP80M4,SSAF67-YVP90M4,SSAF67-YVPEJ100M4,SSAF67-YVPEJ112M4,SSAF67-YVPEJ132M4,SSAF67-YVPEJ63M4,SSAF67-YVPEJ71M4,SSAF67-YVPEJ80M4,SSAF67-YVPEJ90M4,GSAF69-Y0.18KW,GSAF69-Y0.25KW,GSAF69-Y0.37KW,GSAF69-Y0.55KW,GSAF69-Y0.75KW,GSAF69-Y1.1KW,GSAF69-Y1.5KW,GSAF69-Y100M4,GSAF69-Y112M4,GSAF69-Y132M4,GSAF69-Y2.2KW,GSAF69-Y3KW,GSAF69-Y4KW,GSAF69-Y5.5KW,GSAF69-Y63M4,GSAF69-Y71M4,GSAF69-Y80M4,GSAF69-Y90M4,GSAF69-YB100M4,GSAF69-YB112M4,GSAF69-YB132M4,GSAF69-YB63M4,GSAF69-YB71M4,GSAF69-YB80M4,GSAF69-YB90M4,GSAF69-YDP100M4,GSAF69-YDP112M4,GSAF69-YDP132M4,GSAF69-YDP63M4,GSAF69-YDP71M4,GSAF69-YDP80M4,GSAF69-YDP90M4,GSAF69-YE100M4,GSAF69-YE112M4,GSAF69-YE132M4,GSAF69-YE63M4,GSAF69-YE71M4,GSAF69-YE80M4,GSAF69-YE90M4,GSAF69-YEJ100M4,GSAF69-YEJ112M4,GSAF69-YEJ132M4,GSAF69-YEJ63M4,GSAF69-YEJ71M4,GSAF69-YEJ80M4,GSAF69-YEJ90M4,GSAF69-YEJB100M4,GSAF69-YEJB112M4,GSAF69-YEJB132M4,GSAF69-YEJB63M4,GSAF69-YEJB71M4,GSAF69-YEJB80M4,GSAF69-YEJB90M4,GSAF69-YP100M4,GSAF69-YP112M4,GSAF69-YP132M4,GSAF69-YP63M4,GSAF69-YP71M4,GSAF69-YP80M4,GSAF69-YP90M4,GSAF69-YPB100M4,GSAF69-YPB112M4,GSAF69-YPB132M4,GSAF69-YPB63M4,GSAF69-YPB71M4,GSAF69-YPB80M4,GSAF69-YPB90M4,GSAF69-YPE100M4,GSAF69-YPE112M4,GSAF69-YPE132M4,GSAF69-YPE63M4,GSAF69-YPE71M4,GSAF69-YPE80M4,GSAF69-YPE90M4,GSAF69-YS100M4,GSAF69-YS112M4,GSAF69-YS132M4,GSAF69-YS63M4,GSAF69-YS71M4,GSAF69-YS80M4,GSAF69-YS90M4,GSAF69-YVB100M4,GSAF69-YVB112M4,GSAF69-YVB132M4,GSAF69-YVB63M4,GSAF69-YVB71M4,GSAF69-YVB80M4,GSAF69-YVB90M4,GSAF69-YVP100M4,GSAF69-YVP112M4,GSAF69-YVP132M4,GSAF69-YVP63M4,GSAF69-YVP71M4,GSAF69-YVP80M4,GSAF69-YVP90M4,GSAF69-YVPEJ100M4,GSAF69-YVPEJ112M4,GSAF69-YVPEJ132M4,GSAF69-YVPEJ63M4,GSAF69-YVPEJ71M4,GSAF69-YVPEJ80M4,GSAF69-YVPEJ90M4。

SAF69减速机生产厂家展示:看厂请联系微信13827261050,获取位置,需提前一天预约//www.lenable.com/product/list-safxiliejiansuji-cn.html

齿轮减速电机一体机

齿轮减速电机一体机

齿轮减速电机一体机

齿轮减速电机一体机

推荐类似型号:S69减速机

关键词:立式蜗轮蜗杆减速机带马达一体机_伺服电机涡轮涡杆减速机_立式蜗杆减速机_GSAF系列减速机_SAF系列减速机_SAF系列减速器_伺服电机涡轮涡杆减速器_伺服涡轮涡杆减速机_立式蜗轮减速机

SAF系列减速机型号:SAF39减速机,SAF49减速机,SAF59减速机,SAF69减速机,SAF79减速机,SAF89减速机,SAF99齿轮减速电机

SAF系列自锁减速机可配变频电机,刹车电机,防爆电机,伺服电机,交流电机,直流电机,三相电机,单相电机 0.12KW-22KW之间


如需工程师帮选型,请加微信13827261050,留言告知工程师参数要求



标签:   SAF69减速机 SAF67减速机结构图 SAF67减速机数模 SAF67减速机样本 SAF67减速机规格
