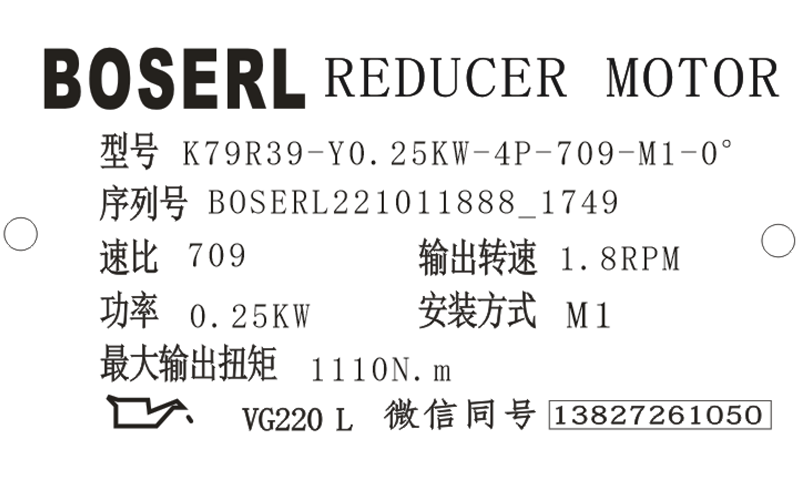

K79R39减速机铭牌参数说明解读含义：有关型号描述的详细情况及其他信息可以参阅本业附件下载中的K79R39减速机选型样本。

K79R39-Y0.25KW-4P-709-M1-0°

K/R：系列代号

79/39：减速机规格代号

Y：电机

0.25KW：电机功率

4P：电机级数

709：减速机传动比

M1：减速机安装位置

0°：接线盒位置

K79R39减速机电机调试运行：

启动前的检查-安装、接线结束后，接通开关前请检查以下各点：安装的断路器以及过电流继电器是否合适；接线是否有差错；接地线是否确实接地。此外，为防范危险于未然，在运转本减速电机预测有危险的场合，以及无法正常发挥功能的场合，为了防范危险情况，请在装置侧多加考虑预防措施。电压以及频率的变动:当施加于电机的电压和频率不是规定值时，电机特性将发生变化,请注意。电机电压在额定电压上下10%以内变动，电机是可以正常使用的，超过10%，有可能烧毁电机，同时伴有出力扭矩降低或电流大等异常。齿轮减速电机

开始运转后的性能确认旋转方向是否正确；电流值是否有超标；是否产生异常振动或噪音；启动频率是否过高；是否发生冲击。若有异常，请按BOSERL减速电机说明书中的“电机故障处理”章节所述步骤执行。

关于带变频器的电机运行：若电机同时配有变频器与电磁制动器，此时制动器的电源应另外设置不可与电机电源并联使用；当电机配变频器使用时，建议使用频率在30-80Hz，将可得到较具实用之性能，且可以长时间运行；若需要更高或更低的转速，也可以通过调整减速比来实现；当电机使用频率在30Hz以下或80Hz以上时，与30-80Hz相比，电机温度将上升，运行噪间/振动将变大，此时电机只能短时间运行，

请客户谨慎使用；变频电机特性曲线如下图所示，在6-50Hz的范围内，为恒转矩运行，电机可保持连续运转扭矩与50Hz时的额定扭矩相同(但30Hz以下电机发热较快，不可长时间运行)；在50-120Hz的范围内，为恒功率运行，电机可保持连续运转输出功率与50Hz时相同(高频运行时电机转速高，扭矩等比例降低，且80Hz以上电机发热较快，不可长时间运行)。本公司变频三相电机能够配置变频器进行变频调速操作。当在低频工作区工作时，由于电机转速的降低而使电机原有设计的风冷系统的冷却作用降低，电机温升将会上升。而在高频区工作时，过高的电机转速使电机原有冷切风扇消耗更多的功率，增加了风摩损耗，降低了电机的效率，并且大大增加电机的运行噪声。因此我们建议:在进行变频操作时电机最好加装独立的冷却风扇。直角减速机

K79R39减速机电机运转时环境与操作注意点：

危险：在电机或所驱动设备上进行操作前，先切断电源并锁定。工作过程中一定要确保无爆炸性气体存在；请勿在拆下接线盒罩壳的状态下运转。接线后，请在原先位置安装接线盒罩壳。否则有可能会导致触电。请切实进行安装；运转中，请绝对不要接近旋转体(旋转轴等)。否则有可能会被卷入，受伤；停电时，请务必切断电源。否则不知不觉中来电可能会导致受伤、装置损坏。

注意：运转中，减速电机的温度会变得很高。请注意不要触及手和身体。否则有可能会导致烫伤；发生异常时，请立即停止运转。否则有可能会导致触电、受伤、火灾。请勿超出额定负载使用。否则有可能会导致受伤、装置损坏；使电机反转时，请务必暂停后开始反转。否则有可能会出现旋转方向未发生改变的电机失控；电机即使在正常运行状态，有时表面温度也会有超过70°C的现象。电机运行时，若有靠近电机的可能请制作"高温注意”图标井贴于电机显眼处；电机反转时，单相电机按接线图进行调整，三相电机只需要将电源线两相对调即可。K系列减速机

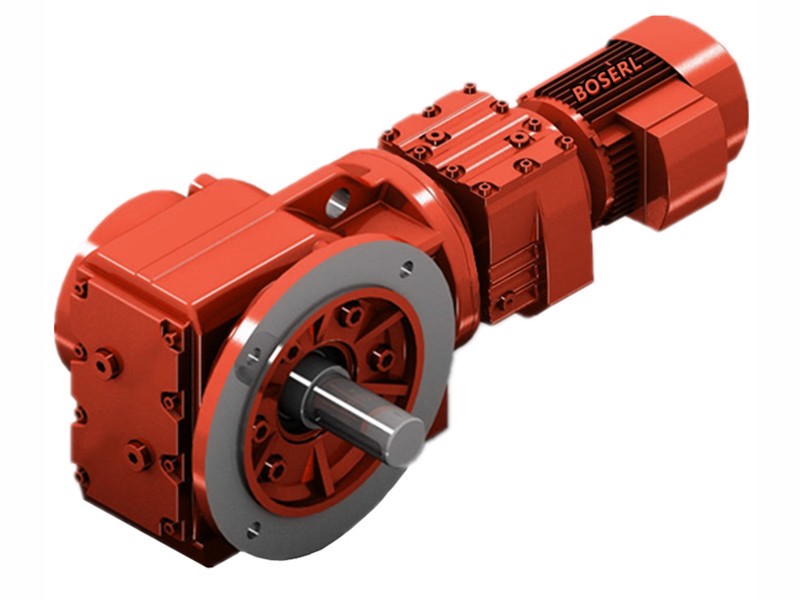

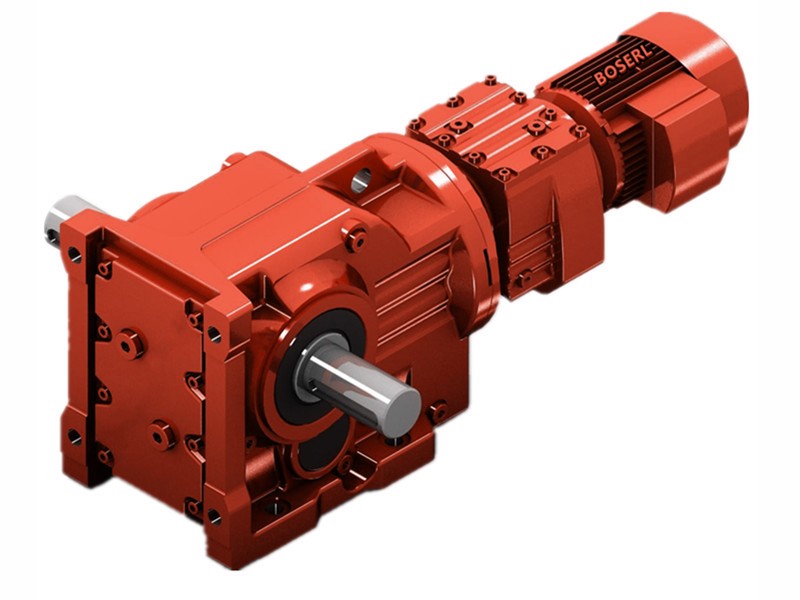

K79R39减速电机型号：

YQK77R37-Y63M4，YQK77R37-Y71M4，YQK77R37-Y80M4，YQK77R37-Y90M4，YQK77RF37-Y0.12KW，YQK77RF37-Y0.18KW，YQK77RF37-Y0.25KW，YQK77RF37-Y0.37KW，YQK77RF37-Y0.55KW，YQK77RF37-Y0.75KW，YQK77RF37-Y1.1KW，YQK77RF37-Y1.5KW，YQK77RF37-Y63M4，YQK77RF37-Y71M4，YQK77RF37-Y80M4，YQK77RF37-Y90M4，YQK77RF37-YB63M4，YQK77RF37-YB71M4，YQK77RF37-YB80M4，YQK77RF37-YB90S4，YQK77RF37-YDP63M4，YQK77RF37-YDP71M4，YQK77RF37-YDP80M4，YQK77RF37-YDP90S4，YQK77RF37-YE63M4，YQK77RF37-YE71M4，YQK77RF37-YE80M4，YQK77RF37-YE90S4，YQK77RF37-YEJ63M4，YQK77RF37-YEJ71M4，YQK77RF37-YEJ80M4，YQK77RF37-YEJ90S4，YQK77RF37-YEJB63M4，YQK77RF37-YEJB71M4，YQK77RF37-YEJB80M4，YQK77RF37-YEJB90S4，YQK77RF37-YP63M4，YQK77RF37-YP71M4，YQK77RF37-YP80M4，YQK77RF37-YP90S4，YQK77RF37-YPB63M4，YQK77RF37-YPB71M4，YQK77RF37-YPB80M4，YQK77RF37-YPB90S4，YQK77RF37-YPE63M4，YQK77RF37-YPE71M4，YQK77RF37-YPE80M4，YQK77RF37-YPE90S4，YQK77RF37-YS63M4，YQK77RF37-YS71M4，YQK77RF37-YS80M4，YQK77RF37-YS90S4，YQK77RF37-YVB63M4，YQK77RF37-YVB71M4，YQK77RF37-YVB80M4，YQK77RF37-YVB90S4，YQK77RF37-YVP63M4，YQK77RF37-YVP71M4，YQK77RF37-YVP80M4，YQK77RF37-YVP90S4，YQK77RF37-YVPEJ63M4，YQK77RF37-YVPEJ71M4，YQK77RF37-YVPEJ80M4，YQK77RF37-YVPEJ90S4，AK77R37-Y63M4，AK77R37-Y71M4，AK77R37-Y80M4，AK77R37-Y90M4，AK77RF37-Y0.12KW，AK77RF37-Y0.18KW，AK77RF37-Y0.25KW，AK77RF37-Y0.37KW，AK77RF37-Y0.55KW，AK77RF37-Y0.75KW，AK77RF37-Y1.1KW，AK77RF37-Y1.5KW，AK77RF37-Y63M4，AK77RF37-Y71M4，AK77RF37-Y80M4，AK77RF37-Y90M4，AK77RF37-YB63M4，AK77RF37-YB71M4，AK77RF37-YB80M4，AK77RF37-YB90S4，AK77RF37-YDP63M4，AK77RF37-YDP71M4，AK77RF37-YDP80M4，AK77RF37-YDP90S4，AK77RF37-YE63M4，AK77RF37-YE71M4，AK77RF37-YE80M4，AK77RF37-YE90S4，AK77RF37-YEJ63M4，AK77RF37-YEJ71M4，AK77RF37-YEJ80M4，AK77RF37-YEJ90S4，AK77RF37-YEJB63M4，AK77RF37-YEJB71M4，AK77RF37-YEJB80M4，AK77RF37-YEJB90S4，AK77RF37-YP63M4，AK77RF37-YP71M4，AK77RF37-YP80M4，AK77RF37-YP90S4，AK77RF37-YPB63M4，AK77RF37-YPB71M4，AK77RF37-YPB80M4，AK77RF37-YPB90S4，AK77RF37-YPE63M4，AK77RF37-YPE71M4，AK77RF37-YPE80M4，AK77RF37-YPE90S4，AK77RF37-YS63M4，AK77RF37-YS71M4，AK77RF37-YS80M4，AK77RF37-YS90S4，AK77RF37-YVB63M4，AK77RF37-YVB71M4，AK77RF37-YVB80M4，AK77RF37-YVB90S4，AK77RF37-YVP63M4，AK77RF37-YVP71M4，AK77RF37-YVP80M4，AK77RF37-YVP90S4，AK77RF37-YVPEJ63M4，AK77RF37-YVPEJ71M4，AK77RF37-YVPEJ80M4，AK77RF37-YVPEJ90S4，SK77R37-Y63M4，SK77R37-Y71M4，SK77R37-Y80M4，SK77R37-Y90M4，SK77RF37-Y0.12KW，SK77RF37-Y0.18KW，SK77RF37-Y0.25KW，SK77RF37-Y0.37KW，SK77RF37-Y0.55KW，SK77RF37-Y0.75KW，SK77RF37-Y1.1KW，SK77RF37-Y1.5KW，SK77RF37-Y63M4，SK77RF37-Y71M4，SK77RF37-Y80M4，SK77RF37-Y90M4，SK77RF37-YB63M4，SK77RF37-YB71M4，SK77RF37-YB80M4，SK77RF37-YB90S4，SK77RF37-YDP63M4，SK77RF37-YDP71M4，SK77RF37-YDP80M4，SK77RF37-YDP90S4，SK77RF37-YE63M4，SK77RF37-YE71M4，SK77RF37-YE80M4，SK77RF37-YE90S4，SK77RF37-YEJ63M4，SK77RF37-YEJ71M4，SK77RF37-YEJ80M4，SK77RF37-YEJ90S4，SK77RF37-YEJB63M4，SK77RF37-YEJB71M4，SK77RF37-YEJB80M4，SK77RF37-YEJB90S4，SK77RF37-YP63M4，SK77RF37-YP71M4，SK77RF37-YP80M4，SK77RF37-YP90S4，SK77RF37-YPB63M4，SK77RF37-YPB71M4，SK77RF37-YPB80M4，SK77RF37-YPB90S4，SK77RF37-YPE63M4，SK77RF37-YPE71M4，SK77RF37-YPE80M4，SK77RF37-YPE90S4，SK77RF37-YS63M4，SK77RF37-YS71M4，SK77RF37-YS80M4，SK77RF37-YS90S4，SK77RF37-YVB63M4，SK77RF37-YVB71M4，SK77RF37-YVB80M4，SK77RF37-YVB90S4，SK77RF37-YVP63M4，SK77RF37-YVP71M4，SK77RF37-YVP80M4，SK77RF37-YVP90S4，SK77RF37-YVPEJ63M4，SK77RF37-YVPEJ71M4，SK77RF37-YVPEJ80M4，SK77RF37-YVPEJ90S4，XDK77R37-Y63M4，XDK77R37-Y71M4，XDK77R37-Y80M4，XDK77R37-Y90M4，XDK77RF37-Y0.12KW，XDK77RF37-Y0.18KW，XDK77RF37-Y0.25KW，XDK77RF37-Y0.37KW，XDK77RF37-Y0.55KW，XDK77RF37-Y0.75KW，XDK77RF37-Y1.1KW，XDK77RF37-Y1.5KW，XDK77RF37-Y63M4，XDK77RF37-Y71M4，XDK77RF37-Y80M4，XDK77RF37-Y90M4，XDK77RF37-YB63M4，XDK77RF37-YB71M4，XDK77RF37-YB80M4，XDK77RF37-YB90S4，XDK77RF37-YDP63M4，XDK77RF37-YDP71M4，XDK77RF37-YDP80M4，XDK77RF37-YDP90S4，XDK77RF37-YE63M4，XDK77RF37-YE71M4，XDK77RF37-YE80M4，XDK77RF37-YE90S4，XDK77RF37-YEJ63M4，XDK77RF37-YEJ71M4，XDK77RF37-YEJ80M4，XDK77RF37-YEJ90S4，XDK77RF37-YEJB63M4，XDK77RF37-YEJB71M4，XDK77RF37-YEJB80M4，XDK77RF37-YEJB90S4，XDK77RF37-YP63M4，XDK77RF37-YP71M4，XDK77RF37-YP80M4，XDK77RF37-YP90S4，XDK77RF37-YPB63M4，XDK77RF37-YPB71M4，XDK77RF37-YPB80M4，XDK77RF37-YPB90S4，XDK77RF37-YPE63M4，XDK77RF37-YPE71M4，XDK77RF37-YPE80M4，XDK77RF37-YPE90S4，XDK77RF37-YS63M4，XDK77RF37-YS71M4，XDK77RF37-YS80M4，XDK77RF37-YS90S4，XDK77RF37-YVB63M4，XDK77RF37-YVB71M4，XDK77RF37-YVB80M4，XDK77RF37-YVB90S4，XDK77RF37-YVP63M4，XDK77RF37-YVP71M4，XDK77RF37-YVP80M4，XDK77RF37-YVP90S4，XDK77RF37-YVPEJ63M4，XDK77RF37-YVPEJ71M4，XDK77RF37-YVPEJ80M4，XDK77RF37-YVPEJ90S4，NK77R37-Y63M4，NK77R37-Y71M4，NK77R37-Y80M4，NK77R37-Y90M4，NK77RF37-Y0.12KW，NK77RF37-Y0.18KW，NK77RF37-Y0.25KW，NK77RF37-Y0.37KW，NK77RF37-Y0.55KW，NK77RF37-Y0.75KW，NK77RF37-Y1.1KW，NK77RF37-Y1.5KW，NK77RF37-Y63M4，NK77RF37-Y71M4，NK77RF37-Y80M4，NK77RF37-Y90M4，NK77RF37-YB63M4，NK77RF37-YB71M4，NK77RF37-YB80M4，NK77RF37-YB90S4，NK77RF37-YDP63M4，NK77RF37-YDP71M4，NK77RF37-YDP80M4，NK77RF37-YDP90S4，NK77RF37-YE63M4，NK77RF37-YE71M4，NK77RF37-YE80M4，NK77RF37-YE90S4，NK77RF37-YEJ63M4，NK77RF37-YEJ71M4，NK77RF37-YEJ80M4，NK77RF37-YEJ90S4，NK77RF37-YEJB63M4，NK77RF37-YEJB71M4，NK77RF37-YEJB80M4，NK77RF37-YEJB90S4，NK77RF37-YP63M4，NK77RF37-YP71M4，NK77RF37-YP80M4，NK77RF37-YP90S4，NK77RF37-YPB63M4，NK77RF37-YPB71M4，NK77RF37-YPB80M4，NK77RF37-YPB90S4，NK77RF37-YPE63M4，NK77RF37-YPE71M4，NK77RF37-YPE80M4，NK77RF37-YPE90S4，NK77RF37-YS63M4，NK77RF37-YS71M4，NK77RF37-YS80M4，NK77RF37-YS90S4，NK77RF37-YVB63M4，NK77RF37-YVB71M4，NK77RF37-YVB80M4，NK77RF37-YVB90S4，NK77RF37-YVP63M4，NK77RF37-YVP71M4，NK77RF37-YVP80M4，NK77RF37-YVP90S4，NK77RF37-YVPEJ63M4，NK77RF37-YVPEJ71M4，NK77RF37-YVPEJ80M4，NK77RF37-YVPEJ90S4，WK77R37-Y63M4，WK77R37-Y71M4，WK77R37-Y80M4，WK77R37-Y90M4，WK77RF37-Y0.12KW，WK77RF37-Y0.18KW，WK77RF37-Y0.25KW，WK77RF37-Y0.37KW，WK77RF37-Y0.55KW，WK77RF37-Y0.75KW，WK77RF37-Y1.1KW，WK77RF37-Y1.5KW，WK77RF37-Y63M4，WK77RF37-Y71M4，WK77RF37-Y80M4，WK77RF37-Y90M4，WK77RF37-YB63M4，WK77RF37-YB71M4，WK77RF37-YB80M4，WK77RF37-YB90S4，WK77RF37-YDP63M4，WK77RF37-YDP71M4，WK77RF37-YDP80M4，WK77RF37-YDP90S4，WK77RF37-YE63M4，WK77RF37-YE71M4，WK77RF37-YE80M4，WK77RF37-YE90S4，WK77RF37-YEJ63M4，WK77RF37-YEJ71M4，WK77RF37-YEJ80M4，WK77RF37-YEJ90S4，WK77RF37-YEJB63M4，WK77RF37-YEJB71M4，WK77RF37-YEJB80M4，WK77RF37-YEJB90S4，WK77RF37-YP63M4，WK77RF37-YP71M4，WK77RF37-YP80M4，WK77RF37-YP90S4，WK77RF37-YPB63M4，WK77RF37-YPB71M4，WK77RF37-YPB80M4，WK77RF37-YPB90S4，WK77RF37-YPE63M4，WK77RF37-YPE71M4，WK77RF37-YPE80M4，WK77RF37-YPE90S4，WK77RF37-YS63M4，WK77RF37-YS71M4，WK77RF37-YS80M4，WK77RF37-YS90S4，WK77RF37-YVB63M4，WK77RF37-YVB71M4，WK77RF37-YVB80M4，WK77RF37-YVB90S4，WK77RF37-YVP63M4，WK77RF37-YVP71M4，WK77RF37-YVP80M4，WK77RF37-YVP90S4，WK77RF37-YVPEJ63M4，WK77RF37-YVPEJ71M4，WK77RF37-YVPEJ80M4，WK77RF37-YVPEJ90S4，JCK77R37-Y63M4，JCK77R37-Y71M4，JCK77R37-Y80M4，JCK77R37-Y90M4，JCK77RF37-Y0.12KW，JCK77RF37-Y0.18KW，JCK77RF37-Y0.25KW，JCK77RF37-Y0.37KW，JCK77RF37-Y0.55KW，JCK77RF37-Y0.75KW，JCK77RF37-Y1.1KW，JCK77RF37-Y1.5KW，JCK77RF37-Y63M4，JCK77RF37-Y71M4，JCK77RF37-Y80M4，JCK77RF37-Y90M4，JCK77RF37-YB63M4，JCK77RF37-YB71M4，JCK77RF37-YB80M4，JCK77RF37-YB90S4，JCK77RF37-YDP63M4，JCK77RF37-YDP71M4，JCK77RF37-YDP80M4，JCK77RF37-YDP90S4，JCK77RF37-YE63M4，JCK77RF37-YE71M4，JCK77RF37-YE80M4，JCK77RF37-YE90S4，JCK77RF37-YEJ63M4，JCK77RF37-YEJ71M4，JCK77RF37-YEJ80M4，JCK77RF37-YEJ90S4，JCK77RF37-YEJB63M4，JCK77RF37-YEJB71M4，JCK77RF37-YEJB80M4，JCK77RF37-YEJB90S4，JCK77RF37-YP63M4，JCK77RF37-YP71M4，JCK77RF37-YP80M4，JCK77RF37-YP90S4，JCK77RF37-YPB63M4，JCK77RF37-YPB71M4，JCK77RF37-YPB80M4，JCK77RF37-YPB90S4，JCK77RF37-YPE63M4，JCK77RF37-YPE71M4，JCK77RF37-YPE80M4，JCK77RF37-YPE90S4，JCK77RF37-YS63M4，JCK77RF37-YS71M4，JCK77RF37-YS80M4，JCK77RF37-YS90S4，JCK77RF37-YVB63M4，JCK77RF37-YVB71M4，JCK77RF37-YVB80M4，JCK77RF37-YVB90S4，JCK77RF37-YVP63M4，JCK77RF37-YVP71M4，JCK77RF37-YVP80M4，JCK77RF37-YVP90S4，JCK77RF37-YVPEJ63M4，JCK77RF37-YVPEJ71M4，JCK77RF37-YVPEJ80M4，JCK77RF37-YVPEJ90S4，KW77RW37-Y63M4，KW77RW37-Y71M4，KW77RW37-Y80M4，KW77RW37-Y90M4，KW77RWF37-Y0.12KW，KW77RWF37-Y0.18KW，KW77RWF37-Y0.25KW，KW77RWF37-Y0.37KW，KW77RWF37-Y0.55KW，KW77RWF37-Y0.75KW，KW77RWF37-Y1.1KW，KW77RWF37-Y1.5KW，KW77RWF37-Y63M4，KW77RWF37-Y71M4，KW77RWF37-Y80M4，KW77RWF37-Y90M4，KW77RWF37-YB63M4，KW77RWF37-YB71M4，KW77RWF37-YB80M4，KW77RWF37-YB90S4，KW77RWF37-YDP63M4，KW77RWF37-YDP71M4，KW77RWF37-YDP80M4，KW77RWF37-YDP90S4，KW77RWF37-YE63M4，KW77RWF37-YE71M4，KW77RWF37-YE80M4，KW77RWF37-YE90S4，KW77RWF37-YEJ63M4，KW77RWF37-YEJ71M4，KW77RWF37-YEJ80M4，KW77RWF37-YEJ90S4，KW77RWF37-YEJB63M4，KW77RWF37-YEJB71M4，KW77RWF37-YEJB80M4，KW77RWF37-YEJB90S4，KW77RWF37-YP63M4，KW77RWF37-YP71M4，KW77RWF37-YP80M4，KW77RWF37-YP90S4，KW77RWF37-YPB63M4，KW77RWF37-YPB71M4，KW77RWF37-YPB80M4，KW77RWF37-YPB90S4，KW77RWF37-YPE63M4，KW77RWF37-YPE71M4，KW77RWF37-YPE80M4，KW77RWF37-YPE90S4，KW77RWF37-YS63M4，KW77RWF37-YS71M4，KW77RWF37-YS80M4，KW77RWF37-YS90S4，KW77RWF37-YVB63M4，KW77RWF37-YVB71M4，KW77RWF37-YVB80M4，KW77RWF37-YVB90S4，KW77RWF37-YVP63M4，KW77RWF37-YVP71M4，KW77RWF37-YVP80M4，KW77RWF37-YVP90S4，KW77RWF37-YVPEJ63M4，KW77RWF37-YVPEJ71M4，KW77RWF37-YVPEJ80M4，KW77RWF37-YVPEJ90S4，K79R39-Y63M4，K79R39-Y71M4，K79R39-Y80M4，K79R39-Y90M4，K79RF39-Y0.12KW，K79RF39-Y0.18KW，K79RF39-Y0.25KW，K79RF39-Y0.39KW，K79RF39-Y0.55KW，K79RF39-Y0.75KW，K79RF39-Y1.1KW，K79RF39-Y1.5KW，K79RF39-Y63M4，K79RF39-Y71M4，K79RF39-Y80M4，K79RF39-Y90M4，K79RF39-YB63M4，K79RF39-YB71M4，K79RF39-YB80M4，K79RF39-YB90S4，K79RF39-YDP63M4，K79RF39-YDP71M4，K79RF39-YDP80M4，K79RF39-YDP90S4，K79RF39-YE63M4，K79RF39-YE71M4，K79RF39-YE80M4，K79RF39-YE90S4，K79RF39-YEJ63M4，K79RF39-YEJ71M4，K79RF39-YEJ80M4，K79RF39-YEJ90S4，K79RF39-YEJB63M4，K79RF39-YEJB71M4，K79RF39-YEJB80M4，K79RF39-YEJB90S4，K79RF39-YP63M4，K79RF39-YP71M4，K79RF39-YP80M4，K79RF39-YP90S4，K79RF39-YPB63M4，K79RF39-YPB71M4，K79RF39-YPB80M4，K79RF39-YPB90S4，K79RF39-YPE63M4，K79RF39-YPE71M4，K79RF39-YPE80M4，K79RF39-YPE90S4，K79RF39-YS63M4，K79RF39-YS71M4，K79RF39-YS80M4，K79RF39-YS90S4，K79RF39-YVB63M4，K79RF39-YVB71M4，K79RF39-YVB80M4，K79RF39-YVB90S4，K79RF39-YVP63M4，K79RF39-YVP71M4，K79RF39-YVP80M4，K79RF39-YVP90S4，K79RF39-YVPEJ63M4，K79RF39-YVPEJ71M4，K79RF39-YVPEJ80M4，K79RF39-YVPEJ90S4。
